San Ace 80W Series Splash Proof Fan - 80x80x25 mm
San Ace 80W Series Splash Proof Fan - 80x80x25 mm
SKU:SAN-74430c
Durable San Ace 80W Series Splash Proof Fan - Ideal for cooling with high airflow and safe materials.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
San Ace 80W Series Splash Proof Fan - 80x80x25 mm
$24.99
Quantity: 1
Claim Your Seller Account
San Ace 80W Series Splash Proof Fan - 80x80x25 mm
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

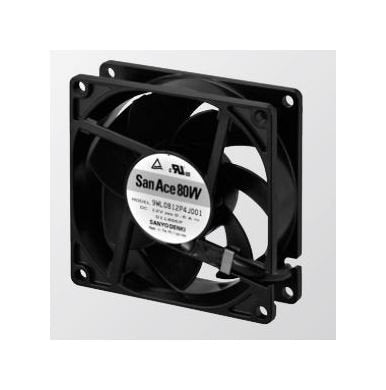

The San Ace 80W Series Splash Proof Fan is a reliable cooling solution suitable for both consumer and institutional applications. With an aluminum frame and UL94V-1 rated plastic impeller, this fan ensures durability and safety. Operating within a voltage range of 10.8 to 13.2 V, it offers a maximum airflow of 2.07 m³/min and a maximum speed of 7,400 rpm. This fan is designed to withstand temperatures from -20 to +70 °C, making it ideal for diverse environments. With a long expected life of 180,000 hours at 60°C, this fan guarantees lasting performance.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Control Lead Wire Color
Brown

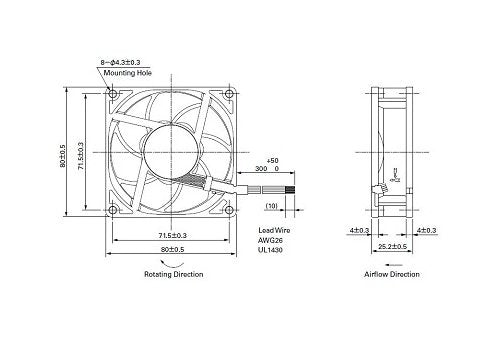

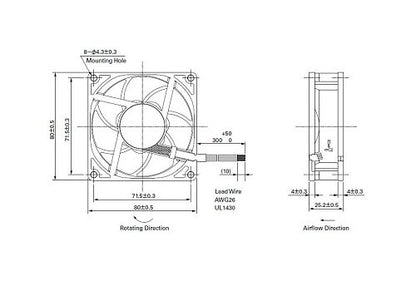

Specifications Dimensions
80Ã80Ã25 mm
Specifications Expected Life At 60c
180,000 hours
Specifications Frame Material
Aluminum (Black coating)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
150 g
Specifications Maximum Air Flow
2.07 m³/min | 73.0 ft³/min
Specifications Maximum Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Maximum Rated Input
7.2 W
Specifications Maximum Rated Input Power
0.6 A
Specifications Maximum Rated Speed
7,400 rpm
Specifications Maximum Sound Pressure Level
49 dBA
Specifications Maximum Static Pressure
177 Pa | 0.71 inH2O
Specifications Minimum Air Flow
0.50 m³/min | 17.6 ft³/min
Specifications Minimum Pulse Width Modulation Pwm Duty Cycle
20 %
Specifications Minimum Rated Current
0.06 A
Specifications Minimum Rated Input Power
0.72 W
Specifications Minimum Rated Speed
1,800 rpm
Specifications Minimum Sound Pressure Level
16 dBA
Specifications Minimum Static Pressure
10.4 Pa | 0.04 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-20 to +70 ºC
Specifications Operating Voltage Range
10.8 to 13.2 V
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
