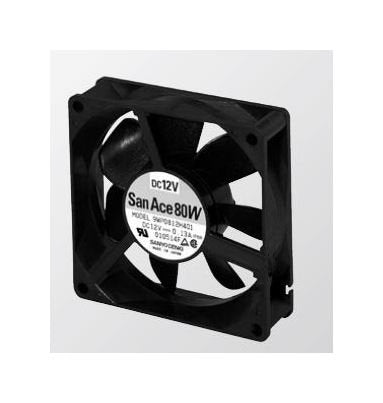

San Ace 80W Series Splash Proof Fan - 80x80x25mm, 12V DC

Name: San Ace 80W Series Splash Proof Fan - 80x80x25mm, 12V DC
Brand: Marsh Electronics, Inc.
SKU: SAN-23ecbd
Price: 24.99 USD
Availability: OutOfStock

SKU:SAN-23ecbd

Enhance airflow efficiency with the San Ace 80W Series Splash Proof Fan, featuring durable construction and quiet operation.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The San Ace 80W Series Splash Proof Fan is a reliable cooling solution designed for demanding environments. Constructed with UL94V-0 and UL94V-1 rated plastics, this fan ensures enhanced safety. Operating at 12V with a rated speed of 2900 RPM, it delivers a maximum airflow of 1.03 m³/min with minimal noise at 29 dBA. With an expected lifespan of 60,000 hours at 60°C, this fan is durable and efficient. Suitable for a temperature range of -20 to +70°C, it meets stringent institutional procurement standards for longevity and performance.

Product Specifications

Specifications Anode Lead Wire Color

Red

Specifications Cathode Lead Wire Color

Black

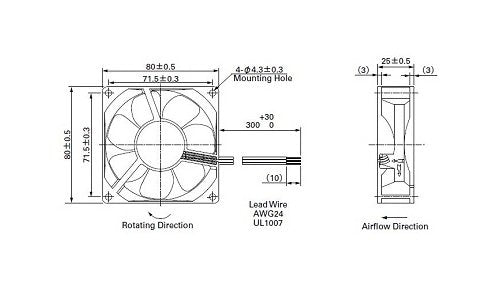

Specifications Dimensions

80Ã80Ã25 mm

Specifications Expected Life At 60c

60,000 hours

Specifications Frame Material

Plastics (Flammability: UL94V-0)

Specifications Impeller Material

Plastics (Flammability: UL94V-1)

Specifications Mass

130 g

Specifications Maximum Air Flow

1.03 mÂ³/min | 36.4 ftÂ³/min

Specifications Maximum Static Pressure

35.3 Pa | 0.142 inH2O

Specifications Non Condensing Storage Temperature

-30 to +70 ÂºC

Specifications Operating Temperature

-20 to +70 ÂºC

Specifications Operating Voltage Range

10.2 to 13.8 V

Specifications Rated Current

0.13 Hz

Specifications Rated Input Power

1.56 W

Specifications Rated Speed

2,900

Specifications Rated Voltage

12 V

Specifications Sensor Lead Wire Color

Yellow

Specifications Sound Pressure Level

29 dBA

San Ace 80W Series Splash Proof Fan - 80x80x25mm, 12V DC
