San Ace 80W Series Splash Proof Fan - 80x80x38mm, 9W, 12V
San Ace 80W Series Splash Proof Fan - 80x80x38mm, 9W, 12V
SKU:SAN-340fda
High-performance San Ace 80W Series Splash Proof Fan - UL94V-0/UL94V-1 plastics, 2.29 m³/min airflow, 6,000 rpm speed, 40,000-hour lifespan.
Regular price
$26.99
Regular price
Sale price
$26.99
Unit price
per
Initiate Order
San Ace 80W Series Splash Proof Fan - 80x80x38mm, 9W, 12V
$26.99
Quantity: 1
Claim Your Seller Account
San Ace 80W Series Splash Proof Fan - 80x80x38mm, 9W, 12V
$26.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 80W Series Splash Proof Fan is a top-of-the-line solution for cooling systems that require reliability and durability. With a frame and impeller made of UL94V-0 and UL94V-1 plastics respectively, this fan ensures safety and high performance. Operating within a wide temperature range of -20 to +70°C, this fan offers longevity with an expected 40,000-hour lifespan at 60°C. Delivering a maximum airflow of 2.29 m³/min and a maximum speed of 6,000 rpm, it maintains optimal cooling efficiency. Whether for consumer or institutional use, this fan meets the highest industry standards.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue

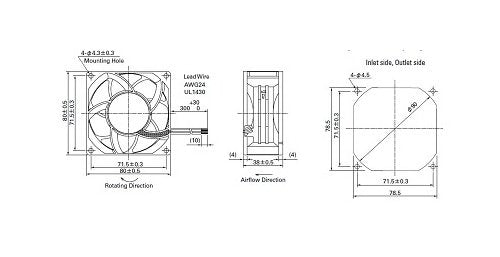

Specifications Dimensions
80Ã80Ã38 mm
Specifications Expected Life At 40c
70,000 hours
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
235 g
Specifications Maximum Air Flow
2.29 m³/min | 80.9 ft³/min
Specifications Maximum Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Maximum Rated Current
0.75 A
Specifications Maximum Rated Input
9 W
Specifications Maximum Rated Speed
6,000 rpm
Specifications Maximum Sound Pressure Level
51 dBA
Specifications Maximum Static Pressure
169 Pa | 0.68 inH2O
Specifications Minimum Air Flow
0.65 m³/min | 23 ft³/min
Specifications Minimum Pulse Width Modulation Pwm Duty Cycle
0 %
Specifications Minimum Rated Current
0.09 A
Specifications Minimum Rated Input Power
1.08 W
Specifications Minimum Rated Speed
1,700 rpm
Specifications Minimum Sound Pressure Level
19 dBA
Specifications Minimum Static Pressure
13.6 Pa | 0.05 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-20 to +70 ºC
Specifications Operating Voltage Range
10.2 to 13.8 V
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
