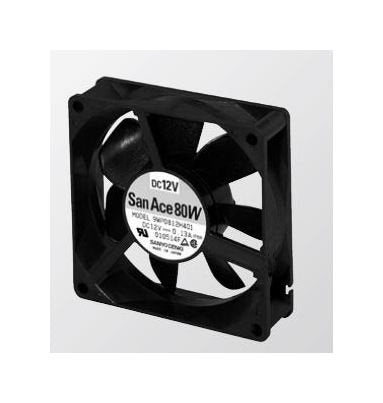

San Ace 80W Series Splash Proof Fan 9WP0848S401
San Ace 80W Series Splash Proof Fan 9WP0848S401
SKU:SAN-3031d7
Reliable San Ace 80W Series Splash Proof Fan for consistent cooling performance in demanding conditions. UL94V-0 & UL94V-1 plastics, wide voltage range, long lifespan, compact design.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
San Ace 80W Series Splash Proof Fan 9WP0848S401
$24.99
Quantity: 1
Claim Your Seller Account
San Ace 80W Series Splash Proof Fan 9WP0848S401
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 80W Series Splash Proof Fan 9WP0848S401 is engineered for durable and reliable cooling performance in demanding environments. With a frame and impeller crafted from UL94V-0 and UL94V-1 rated plastics, this fan ensures safety and efficiency. It operates seamlessly within a wide voltage range of 40.8V to 55.2V, delivering a maximum airflow of 1.20 m³/min and a static pressure of 48.0 Pa. Designed for longevity, it offers an expected lifespan of 40,000 hours at 60ºC. Ideal for applications requiring dependable cooling under varying conditions, this fan is compact at 80x80x25 mm and emits low noise at 34 dBA.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black

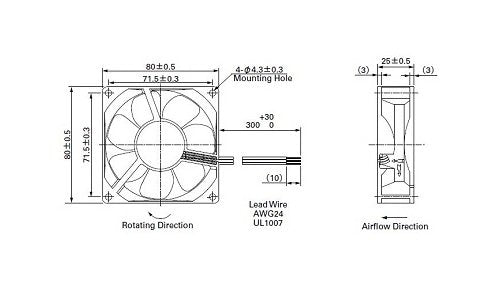

Specifications Dimensions
80Ã80Ã25 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
130 g
Specifications Maximum Air Flow
1.20 m³/min | 42.4 ft³/min
Specifications Maximum Static Pressure
48.0 Pa | 0.193 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-20 to +70 ºC
Specifications Operating Voltage Range
40.8 to 55.2 V
Specifications Rated Current
0.06 Hz
Specifications Rated Input Power
2.88 W
Specifications Rated Speed
3,400
Specifications Rated Voltage
48 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
34 dBA
