San Ace 80W Splash Proof Fan
San Ace 80W Splash Proof Fan
SKU:SAN-ac1796
Reliable San Ace 80W Splash Proof Fan with aluminum frame, UL94V-1 plastic impeller, and long lifespan.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 80W Splash Proof Fan
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 80W Splash Proof Fan
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

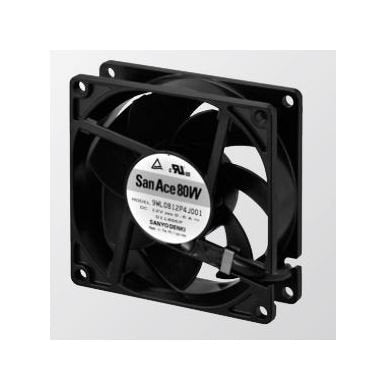

The San Ace 80W Splash Proof Fan is a durable and efficient cooling solution suitable for a wide range of applications. With an aluminum frame and UL94V-1 rated plastic impeller, this fan ensures reliable performance in challenging environments. Operating within a temperature range of -20 to +70°C, it offers a maximum airflow of 1.54 m³/min and a maximum static pressure of 98 Pa, making it ideal for cooling sensitive electronic components. With a long expected life of 180,000 hours at 60°C, this fan is a dependable choice for both consumer and institutional buyers seeking quality and durability.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Control Lead Wire Color
Brown

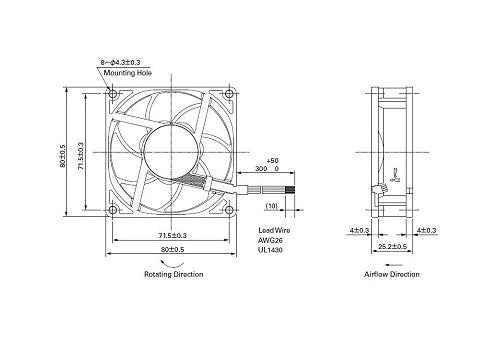

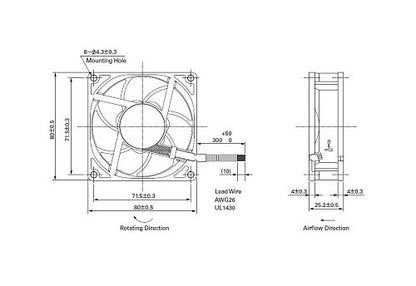

Specifications Dimensions
80Ã80Ã25 mm
Specifications Expected Life At 60c
180,000 hours
Specifications Frame Material
Aluminum (Black coating)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
150 g
Specifications Maximum Air Flow
1.54 m³/min | 54.3 ft³/min
Specifications Maximum Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Maximum Rated Input
3.6 W
Specifications Maximum Rated Input Power
0.3 A
Specifications Maximum Rated Speed
5,500 rpm
Specifications Maximum Sound Pressure Level
43 dBA
Specifications Maximum Static Pressure
98 Pa | 0.39 inH2O
Specifications Minimum Air Flow
0.39 m³/min | 13.7 ft³/min
Specifications Minimum Pulse Width Modulation Pwm Duty Cycle
25 %
Specifications Minimum Rated Current
0.05 A
Specifications Minimum Rated Input Power
0.6 W
Specifications Minimum Rated Speed
1,400 rpm
Specifications Minimum Sound Pressure Level
14 dBA
Specifications Minimum Static Pressure
6.3 Pa | 0.02 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-20 to +70 ºC
Specifications Operating Voltage Range
10.8 to 13.2 V
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
