San Ace 80W Splash Proof Fan
San Ace 80W Splash Proof Fan
SKU:SAN-d4f311
Durable San Ace 80W Splash Proof Fan with high airflow and low noise for industrial cooling systems.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 80W Splash Proof Fan
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 80W Splash Proof Fan
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

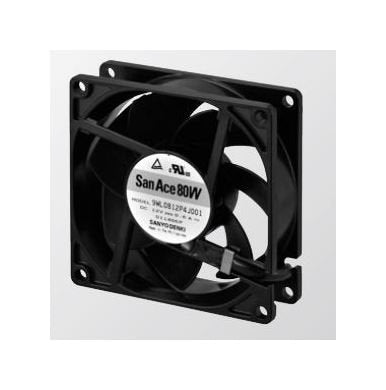

The San Ace 80W Splash Proof Fan is a durable cooling solution designed for demanding environments. With an aluminum frame and plastics impeller rated UL94V-1, this fan ensures reliable performance in a wide temperature range. Operating at 24V with a speed range from 2400 to 7400 rpm, it delivers strong airflow of up to 2.07 m³/min while maintaining low noise levels. Ideal for industrial applications requiring high static pressure, this fan offers longevity with a 180,000-hour lifespan at 60°C, making it a cost-effective and efficient choice for cooling systems.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Control Lead Wire Color
Brown

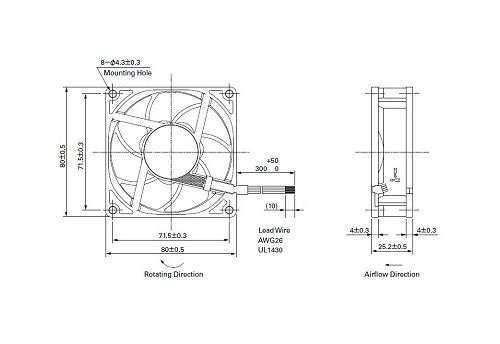

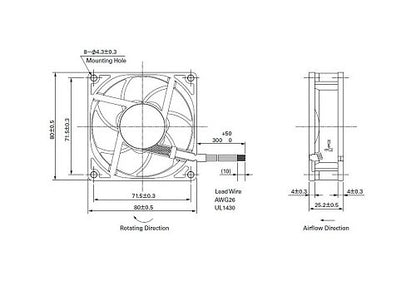

Specifications Dimensions
80Ã80Ã25 mm
Specifications Expected Life At 60c
180,000 hours
Specifications Frame Material
Aluminum (Black coating)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
150 g
Specifications Maximum Air Flow
2.07 m³/min | 73.0 ft³/min
Specifications Maximum Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Maximum Rated Input
6.72 W
Specifications Maximum Rated Input Power
0.28 A
Specifications Maximum Rated Speed
7,400 rpm
Specifications Maximum Sound Pressure Level
49 dBA
Specifications Maximum Static Pressure
177 Pa | 0.71 inH2O
Specifications Minimum Air Flow
0.67 m³/min | 23.6 ft³/min
Specifications Minimum Pulse Width Modulation Pwm Duty Cycle
20 %
Specifications Minimum Rated Current
0.05 A
Specifications Minimum Rated Input Power
1.20 W
Specifications Minimum Rated Speed
2,400 rpm
Specifications Minimum Sound Pressure Level
22 dBA
Specifications Minimum Static Pressure
18.6 Pa | 0.07 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-20 to +70 ºC
Specifications Operating Voltage Range
21.6 to 26.4 V
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
