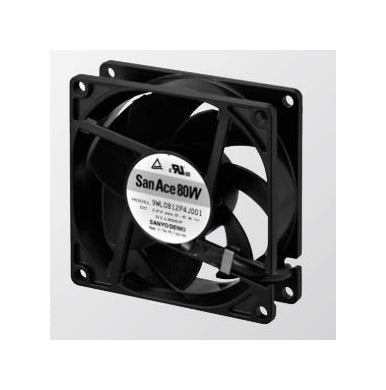

San Ace 80W Splash Proof Fan - 24V
San Ace 80W Splash Proof Fan - 24V
SKU:SAN-47c860
Durable San Ace 80W Series Splash Proof Fan with aluminum frame, PWM control, and long lifespan. Ideal for reliable cooling in varied environments.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 80W Splash Proof Fan - 24V
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 80W Splash Proof Fan - 24V
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 80W Series Splash Proof Fan is a durable and efficient cooling solution suitable for diverse applications. Featuring an aluminum frame with a black coating and a UL94V-1 rated plastics impeller, this fan ensures reliable performance in challenging environments. With a wide operating voltage range, PWM control, and a maximum air flow of 1.03 m³/min, this fan offers optimal cooling while maintaining low noise levels. Designed for longevity and performance, it boasts an expected life of 180,000 hours at 60°C. With compliance to stringent industry standards, this fan is an ideal choice for both consumer and institutional buyers seeking quality and reliability.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Control Lead Wire Color
Brown

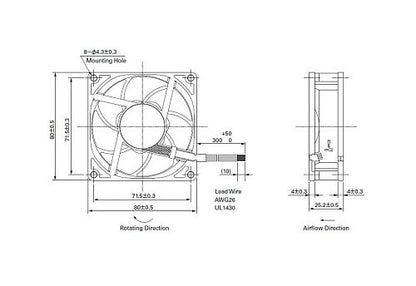

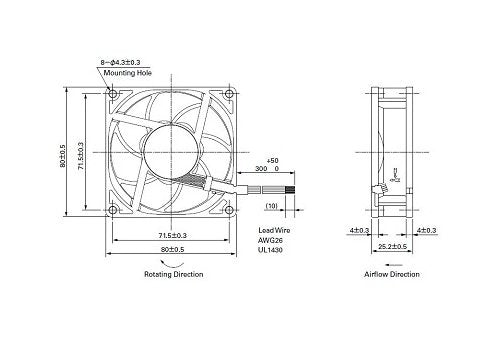

Specifications Dimensions
80Ã80Ã25 mm
Specifications Expected Life At 60c
180,000 hours
Specifications Frame Material
Aluminum (Black coating)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
150 g
Specifications Maximum Air Flow
1.03 m³/min | 36.3 ft³/min
Specifications Maximum Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Maximum Rated Input
1.2 W
Specifications Maximum Rated Input Power
0.05 A
Specifications Maximum Rated Speed
3,700 rpm
Specifications Maximum Sound Pressure Level
31 dBA
Specifications Maximum Static Pressure
44 Pa | 0.17 inH2O
Specifications Minimum Air Flow
0.3 m³/min | 10.5 ft³/min
Specifications Minimum Pulse Width Modulation Pwm Duty Cycle
30 %
Specifications Minimum Rated Current
0.02 A
Specifications Minimum Rated Input Power
0.48 W
Specifications Minimum Rated Speed
1,100 rpm
Specifications Minimum Sound Pressure Level
13 dBA
Specifications Minimum Static Pressure
3.9 Pa | 0.01 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-20 to +70 ºC
Specifications Operating Voltage Range
21.6 to 26.4 V
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
