San Ace 80W Splash Proof Fan
San Ace 80W Splash Proof Fan
SKU:SAN-eb73cb
Reliable San Ace 80W Splash Proof Fan for superior cooling in demanding environments.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 80W Splash Proof Fan
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 80W Splash Proof Fan
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

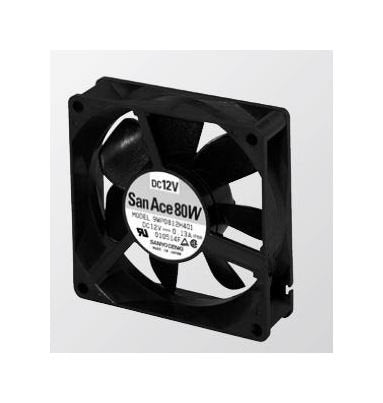

The San Ace 80W Splash Proof Fan is designed for optimal cooling performance in demanding environments. With a frame and impeller made of UL94V-0 and UL94V-1 plastics respectively, this fan ensures superior durability and safety. Operating within temperatures of -20 to +60 °C, it offers a maximum airflow of 1.50 m³/min and a maximum static pressure of 80.4 Pa. Rated for 40,000 hours of operation at 60°C, this fan provides reliable and efficient cooling for various applications.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black

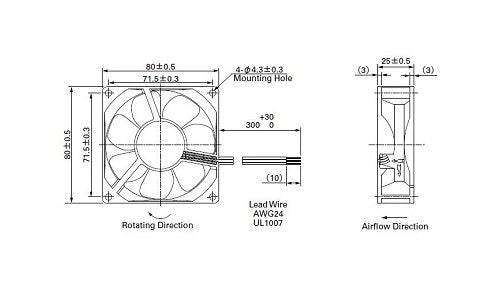

Specifications Dimensions
80Ã80Ã25 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
130 g
Specifications Maximum Air Flow
1.50 m³/min | 53 ft³/min
Specifications Maximum Static Pressure
80.4 Pa | 0.323 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-20 to +60 ºC
Specifications Operating Voltage Range
10.8 to 13.2 V
Specifications Rated Current
0.38 Hz
Specifications Rated Input Power
4.56 W
Specifications Rated Speed
4,500
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
40 dBA
