San Ace 80WF Oil Proof Fans - 80 x 80 x 25 mm, 24V
San Ace 80WF Oil Proof Fans - 80 x 80 x 25 mm, 24V
SKU:SAN-c20dc6
Reliable San Ace 80WF Oil Proof Fans with UL94V-0 flammability standards, 24V operation, and 1.2 m³/min air flow.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 80WF Oil Proof Fans - 80 x 80 x 25 mm, 24V
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 80WF Oil Proof Fans - 80 x 80 x 25 mm, 24V
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

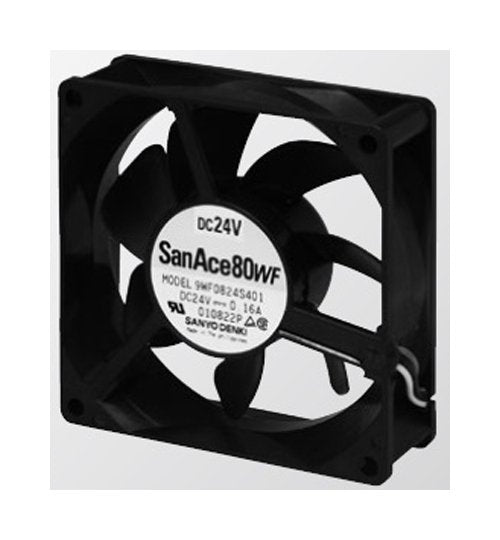

The San Ace 80WF Oil Proof Fans are designed for reliability and durability. With a flame-retardant plastic frame and impeller, these fans meet UL94V-0 flammability standards, making them ideal for industrial use. Operating at a rated voltage of 24V, these fans ensure efficient cooling with a maximum air flow of 1.2 m³/min. The sound pressure level of 38 dBA and an expected life of 40,000 hours at 60ºC guarantee long-lasting performance, meeting the stringent requirements of institutional buyers.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Dimensions
80 x 80 x 25 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-0)
Specifications Mass
130 g
Specifications Maximum Air Flow
1.2 m³/min | 42.4 ft³/min
Specifications Maximum Static Pressure
58 Pa | 0.23 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
20.4 to 27.6 V
Specifications Rated Current
0.16 A
Specifications Rated Input Power
3.84 W
Specifications Rated Speed
4000 rpm
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
38 dBA
