San Ace 80WS Series Splash Proof Fan - 24V, 80x80x25 mm
San Ace 80WS Series Splash Proof Fan - 24V, 80x80x25 mm
SKU:SAN-082660
Reliable San Ace 80WS Splash Proof Fan - 24V, 80x80x25 mm for optimal cooling
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 80WS Series Splash Proof Fan - 24V, 80x80x25 mm
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 80WS Series Splash Proof Fan - 24V, 80x80x25 mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 80WS Series Splash Proof Fan is designed for durability and high performance in challenging environments. With a frame material rated UL94V-0 and impeller material rated UL94V-1, this fan ensures safety and reliability. Operating at 24V with a rated speed of 2,200 rpm, it delivers a maximum airflow of 0.65 m³/min. This fan meets stringent quality standards and is ideal for institutional and government applications requiring long-lasting and efficient cooling solutions.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue

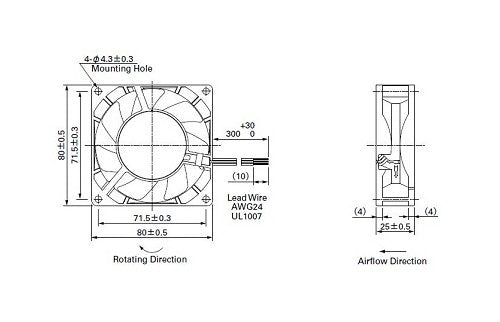

Specifications Dimensions
80Ã80Ã25 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
120 g
Specifications Maximum Air Flow
0.65 m³/min | 23.0 ft³/min
Specifications Maximum Static Pressure
23.5 Pa | 0.094 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-20 to +70 ºC
Specifications Operating Voltage Range
20.4 to 27.6 V
Specifications Rated Current
0.05 A
Specifications Rated Input Power
1.2 W
Specifications Rated Speed
2,200 rpm
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
23 dBA
