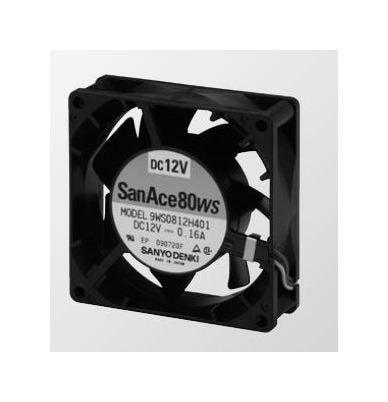

The San Ace 80WS Series Splash Proof Fan is the ideal cooling solution designed for both consumer and institutional use. With a flammability rating of UL94V-0 for the frame material and UL94V-1 for the impeller material, this fan ensures safety and reliability. Operating within a wide temperature range of -20 to +70 °C, and meeting specifications for sound pressure levels and static pressure, this fan provides efficient cooling with a rated speed of 3,100 rpm. With an expected life of 40,000 hours at 60°C, this durable fan is compact and lightweight at 80×80×25 mm and 120 g. Trust in the San Ace 80WS for exceptional performance and longevity.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue

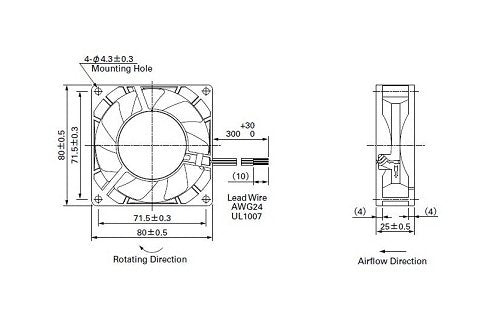

Specifications Dimensions
80Ã80Ã25 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
120 g
Specifications Maximum Air Flow
0.94 m³/min | 33.2 ft³/min
Specifications Maximum Static Pressure
45.1 Pa | 0.181 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-20 to +70 ºC
Specifications Operating Voltage Range
10.2 to 13.8 V
Specifications Rated Current
0.16 A
Specifications Rated Input Power
1.92 W
Specifications Rated Speed
3,100 rpm
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
32 dBA
