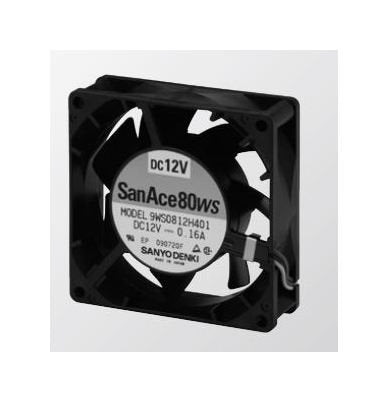

San Ace 80WS Splash Proof Fan
San Ace 80WS Splash Proof Fan
SKU:SAN-7c7671
San Ace 80WS Splash Proof Fan - Durable, efficient, and quiet. Perfect for demanding environments.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 80WS Splash Proof Fan
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 80WS Splash Proof Fan
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 80WS Splash Proof Fan is a top-tier solution with a frame and impeller made of UL94V-0 and UL94V-1 plastics, ensuring superior safety and durability. Operating at 12V with a rated speed of 2,700 rpm, this fan delivers an airflow of 0.83 m³/min and a maximum static pressure of 34.3 Pa. With a long expected life of 40,000 hours at 60ºC, this fan is built to last in challenging conditions while maintaining a quiet operation at 28 dBA. Ideal for both consumer and institutional users seeking reliability and performance in a compact 80x80x25 mm design.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue
Specifications Dimensions
80Ã80Ã25 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
120 g
Specifications Maximum Air Flow
0.83 m³/min | 29.3 ft³/min
Specifications Maximum Static Pressure
34.3 Pa | 0.138 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-20 to +70 ºC
Specifications Operating Voltage Range
10.2 to 13.8 V
Specifications Rated Current
0.13 A
Specifications Rated Input Power
1.56 W
Specifications Rated Speed
2,700 rpm
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
28 dBA
