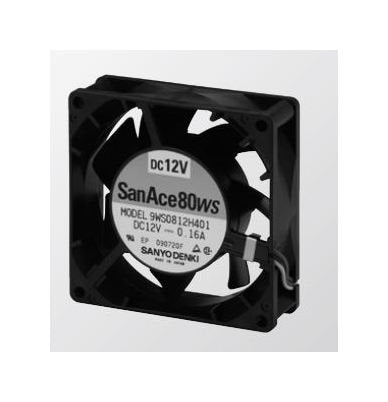

San Ace 80WS Splash Proof Fan
San Ace 80WS Splash Proof Fan
SKU:SAN-de7459
High-performance San Ace 80WS Splash Proof Fan for efficient and quiet cooling in various applications. UL94V-0 & UL94V-1 rated plastics, 40,000-hour lifespan at 60°C.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 80WS Splash Proof Fan
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 80WS Splash Proof Fan
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 80WS Splash Proof Fan is a top-of-the-line cooling solution designed for both consumer and institutional users. Constructed with UL94V-0 and UL94V-1 rated plastics, this fan ensures maximum safety. Operating at a rated voltage of 12V with precision engineering, it delivers optimal performance and longevity for up to 40,000 hours at 60°C. With a sound pressure level of 23 dBA and maximum airflow of 0.65 m³/min, this fan guarantees efficient and quiet operation. Ideal for a wide range of applications, including those requiring compliance with stringent industry standards.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue

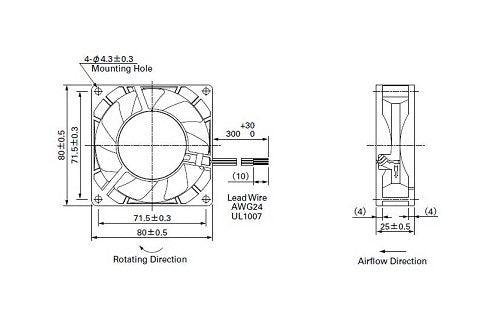

Specifications Dimensions
80Ã80Ã25 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
120 g
Specifications Maximum Air Flow
0.65 m³/min | 23.0 ft³/min
Specifications Maximum Static Pressure
23.5 Pa | 0.094 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-20 to +70 ºC
Specifications Operating Voltage Range
10.2 to 13.8 V
Specifications Rated Current
0.1 A
Specifications Rated Input Power
1.2 W
Specifications Rated Speed
2,200 rpm
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
23 dBA
