San Ace 80WS Splash Proof Fan - 24V
San Ace 80WS Splash Proof Fan - 24V
SKU:SAN-7388a9
Reliable San Ace 80WS Splash Proof Fan for industrial cooling. UL94V-0 frame, UL94V-1 impeller, 24V, 0.09A, 0.94 m³/min airflow, 40,000-hour lifespan at 60°C.
Regular price
$28.99
Regular price
Sale price
$28.99
Unit price
per
Initiate Order
San Ace 80WS Splash Proof Fan - 24V
$28.99
Quantity: 1
Claim Your Seller Account
San Ace 80WS Splash Proof Fan - 24V
$28.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 80WS Splash Proof Fan is a reliable cooling solution designed for industrial and institutional applications. With a UL94V-0 rated plastic frame and UL94V-1 rated impeller, this fan ensures safety and durability. Operating at 24V with a rated current of 0.09A, it delivers optimal airflow of 0.94 m³/min. Meeting stringent quality standards, this fan is built to last with an expected lifespan of 40,000 hours at 60°C. Keep your systems cool and efficient with the San Ace 80WS Splash Proof Fan.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue

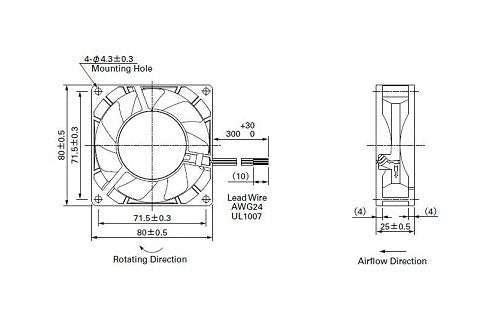

Specifications Dimensions
80Ã80Ã25 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
120 g
Specifications Maximum Air Flow
0.94 m³/min | 33.2 ft³/min
Specifications Maximum Static Pressure
45.1 Pa | 0.181 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-20 to +70 ºC
Specifications Operating Voltage Range
20.4 to 27.6 V
Specifications Rated Current
0.09 A
Specifications Rated Input Power
2.16 W
Specifications Rated Speed
3,100 rpm
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
32 dBA
