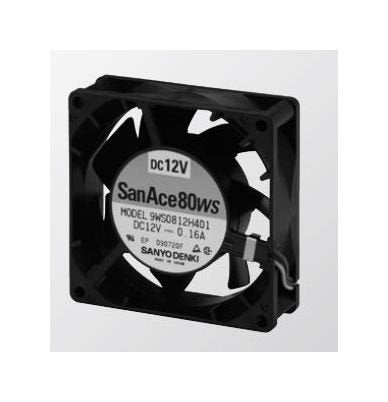

San Ace 80WS Splash Proof Fan - 9WS0824F401
San Ace 80WS Splash Proof Fan - 9WS0824F401
SKU:SAN-3f97db
Enhance equipment cooling with the San Ace 80WS 9WS0824F401 Splash Proof Fan. Durable design, optimal airflow, and long service life.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
San Ace 80WS Splash Proof Fan - 9WS0824F401
$24.99
Quantity: 1
Claim Your Seller Account
San Ace 80WS Splash Proof Fan - 9WS0824F401
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 80WS Series Splash Proof Fan, model 9WS0824F401, is a high-performance cooling solution designed for industrial applications. Built with UL94V-0 and UL94V-1 flammability-rated plastics, this fan provides reliable airflow with a rated voltage of 24V. Operating within a temperature range of -20 to +70°C, it offers a maximum air flow of 0.83 m³/min and a sound pressure level of 28 dBA. With an expected life of 40,000 hours at 60°C, this fan ensures long-lasting and efficient cooling for your equipment.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue

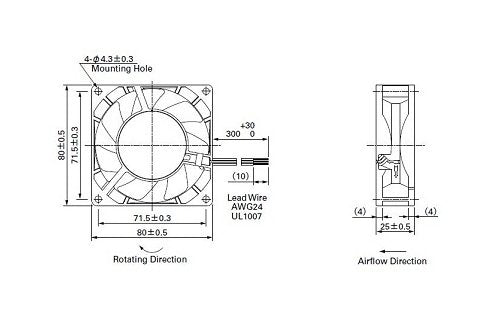

Specifications Dimensions
80Ã80Ã25 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
120 g
Specifications Maximum Air Flow
0.83 m³/min | 29.3 ft³/min
Specifications Maximum Static Pressure
34.3 Pa | 0.138 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-20 to +70 ºC
Specifications Operating Voltage Range
20.4 to 27.6 V
Specifications Rated Current
0.07 A
Specifications Rated Input Power
1.68 W
Specifications Rated Speed
2,700 rpm
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
28 dBA
