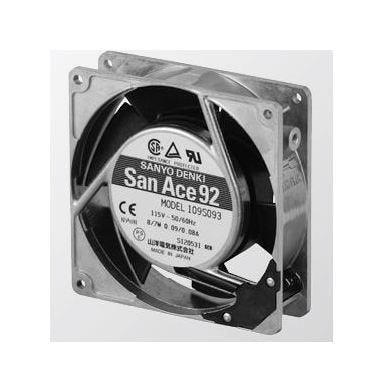

San Ace 92 AC Fan, Model 109S092, UL94V-1 Compliant
San Ace 92 AC Fan, Model 109S092, UL94V-1 Compliant
SKU:SAN-ba8281
Reliable San Ace 92 AC Fan for industrial cooling needs. UL94V-1 compliant, high performance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
San Ace 92 AC Fan, Model 109S092, UL94V-1 Compliant
$49.99
Quantity: 1
Claim Your Seller Account
San Ace 92 AC Fan, Model 109S092, UL94V-1 Compliant
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 92 Series AC Fan, Model 109S092, is a high-performance cooling solution designed for industrial and institutional applications. With a durable aluminum frame and UL94V-1 rated plastic impeller, this fan ensures reliable and safe operation. It meets stringent dielectric strength requirements and operates within a wide temperature range, making it ideal for demanding environments. With a rated speed of 2,700/3,100 RPM and a maximum air flow of 0.95/1.1 m³/min, this fan provides efficient cooling with minimal noise production. Trust the San Ace 92 Series AC Fan for exceptional performance and longevity.
Product Specifications
Specifications Current
0.07/0.06 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
92Ã92Ã25 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
11/10 W
Specifications Locked Rotor Current
0.08/0.08 A
Specifications Mass
290 g
Specifications Maximum Air Flow
0.95/1.1 m³/min | 33.6/38.9 ft³/min
Specifications Maximum Static Pressure
39.2/49.0 Pa | 0.157/0.197 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,700/3,100
Specifications Rated Voltage
200 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
35/38 dBA
