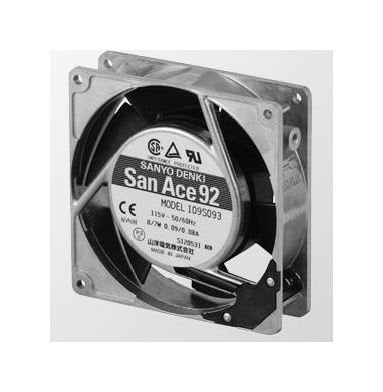

San Ace 92 Series AC Fan - 109S192
San Ace 92 Series AC Fan - 109S192
SKU:SAN-f78729
Powerful and Safe Cooling Solution for Industrial Use
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
San Ace 92 Series AC Fan - 109S192
$39.99
Quantity: 1
Claim Your Seller Account
San Ace 92 Series AC Fan - 109S192
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 92 Series AC Fan, model 109S192, is a high-performance cooling solution designed for industrial and institutional applications. With a durable aluminum frame and UL94V-1 rated plastics impeller, this fan ensures reliable and safe operation. It boasts a dielectric strength of 1,500VAC between input terminals and frame, meeting stringent safety standards. Operating at a rated voltage of 200V with a frequency of 50/60Hz, this fan delivers efficient cooling with a maximum air flow of 0.65 m³/min. Ideal for a wide temperature range from -30 to +60°C, it offers a long service life of 25,000 hours at 60°C, making it a dependable choice for demanding environments.
Product Specifications
Specifications Current
0.06/0.05 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
92Ã92Ã25 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
8/7 W
Specifications Locked Rotor Current
0.06/0.05 A
Specifications Mass
290 g
Specifications Maximum Air Flow
0.55/0.65 m³/min | 19.4/23 ft³/min
Specifications Maximum Static Pressure
12.5/16.3 Pa | 0.050/0.065 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
1500/1700
Specifications Rated Voltage
200 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
24/27 dBA
