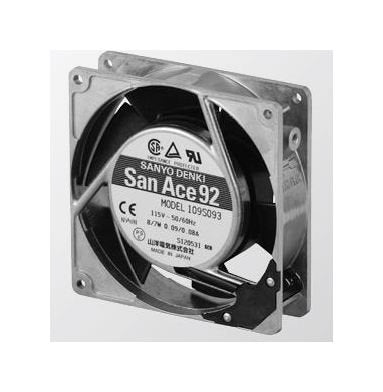

San Ace 92 Series AC Fan - 92S096
San Ace 92 Series AC Fan - 92S096
SKU:SAN-d457fb
Reliable and efficient San Ace 92 Series AC Fan for industrial cooling needs.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
San Ace 92 Series AC Fan - 92S096
$49.99
Quantity: 1
Claim Your Seller Account
San Ace 92 Series AC Fan - 92S096
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 92 Series AC Fan is a reliable cooling solution designed for industrial and commercial applications. With a sturdy aluminum frame and UL94V-1 flammability-rated plastic impeller, this fan ensures efficient heat dissipation and long-lasting performance. Operating at 100V and featuring dielectric strength up to 1,500VAC, it meets stringent durability standards. With a maximum air flow of 0.65 m³/min and a quiet operation at 27 dBA, this fan is ideal for maintaining optimal temperatures in various settings. Trust the San Ace 92 Series AC Fan for superior cooling efficiency and enhanced equipment longevity.
Product Specifications
Specifications Current
0.09/0.08 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
92Ã92Ã25 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
7/6 W
Specifications Locked Rotor Current
0.09/0.08 A
Specifications Mass
290 g
Specifications Maximum Air Flow
0.55/0.65 m³/min | 19.4/23 ft³/min
Specifications Maximum Static Pressure
12.5/16.3 Pa | 0.050/0.065 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
1500/1700
Specifications Rated Voltage
100 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
24/27 dBA
