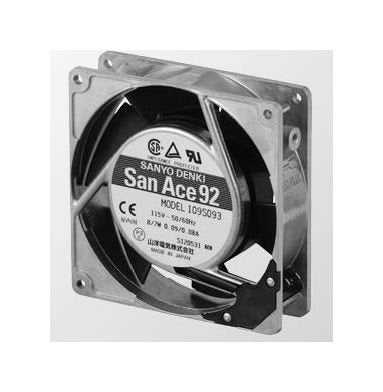

San Ace 92 Series AC Fan - Model 109S095
San Ace 92 Series AC Fan - Model 109S095
SKU:SAN-8f88d8
Enhance airflow efficiency with the San Ace 92 Series AC Fan - Model 109S095, featuring durable construction and industry-standard compliance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 92 Series AC Fan - Model 109S095
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 92 Series AC Fan - Model 109S095
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 92 Series AC Fan, model 109S095, offers reliable cooling performance for a range of applications. With a durable aluminum frame and UL94V-1 rated plastic impeller, this fan ensures safe and efficient operation. Its dielectric strength of up to 1,500VAC and compliance with various industry standards make it ideal for institutional and government procurement needs. Operating within a wide voltage range and boasting a lifespan of 25,000 hours at 60°C, this fan delivers consistent airflow and quiet performance.
Product Specifications
Specifications Current
0.1 /0.09 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
92Ã92Ã25 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
8/7 W
Specifications Locked Rotor Current
0.11/0.1 A
Specifications Mass
290 g
Specifications Maximum Air Flow
0.84/0.98 m³/min | 29.7/34.6 ft³/min
Specifications Maximum Static Pressure
31.4/40.2 Pa | 0.126/0.161 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,400/2,800
Specifications Rated Voltage
100 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
32/35 dBA
