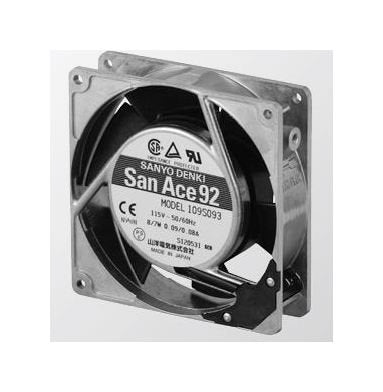

San Ace 92 Series AC Fan with Sensor
San Ace 92 Series AC Fan with Sensor
SKU:SAN-9cdcef
Efficient and reliable cooling solution for industrial and institutional applications. Durable aluminum frame, UL94V-1 rated plastic impeller. Wide operating temperature range. 25,000-hour lifespan at 60°C.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
San Ace 92 Series AC Fan with Sensor
$59.99
Quantity: 1
Claim Your Seller Account
San Ace 92 Series AC Fan with Sensor
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 92 Series AC Fan with Sensor is a reliable cooling solution designed for industrial and institutional applications. With a durable aluminum frame and UL94V-1 rated plastic impeller, this fan ensures safe and efficient operation. It meets stringent dielectric strength requirements and operates within a wide temperature range. With an expected lifespan of 25,000 hours at 60°C, this fan delivers consistent performance and longevity, making it an ideal choice for demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.1 /0.09 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
92Ã92Ã25 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
8/7 W
Specifications Locked Rotor Current
0.11/0.1 A
Specifications Mass
310 g
Specifications Maximum Air Flow
0.84/0.98 m³/min | 29.7/34.6 ft³/min
Specifications Maximum Static Pressure
31.4/40.2 Pa | 0.126/0.161 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-10 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,400/2,800
Specifications Rated Voltage
100 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
32/35 dBA
