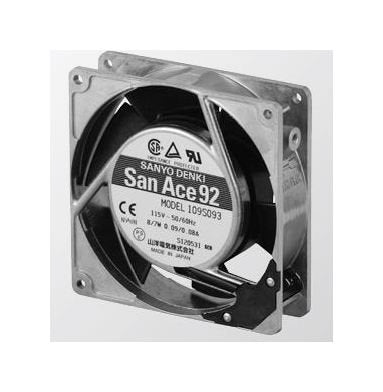

San Ace 92 Series AC Fan with Sensor - 109S494
San Ace 92 Series AC Fan with Sensor - 109S494
SKU:SAN-e0e0c1
The high-performance San Ace 92 Series AC Fan with Sensor provides reliable cooling with enhanced safety features for industrial and institutional applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
San Ace 92 Series AC Fan with Sensor - 109S494
$49.99
Quantity: 1
Claim Your Seller Account
San Ace 92 Series AC Fan with Sensor - 109S494
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 92 Series AC Fan with Sensor is a high-performance cooling solution designed for industrial and institutional applications. With a durable aluminum frame and UL94V-1 rated plastic impeller, this fan ensures reliable cooling with a dielectric strength of up to 1,500VAC. Operating at a voltage range of ±10% and a rated voltage of 230V, this fan delivers a maximum air flow of 1.1 m³/min and a maximum static pressure of 49.0 Pa. Its compact dimensions of 92×92×25 mm make it ideal for space-constrained environments. With a sound pressure level of 38 dBA, this fan offers efficient cooling with low noise levels, enhancing overall operational comfort and performance. Certified for 25,000 hours of expected life at 60°C, this fan is a durable and efficient choice for demanding applications.
Product Specifications
Specifications Current
0.06/0.05 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
92Ã92Ã25 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
10/9 W
Specifications Locked Rotor Current
0.07/0.07 A
Specifications Mass
310 g
Specifications Maximum Air Flow
0.95/1.1 m³/min | 33.6/38.9 ft³/min
Specifications Maximum Static Pressure
39.2/49.0 Pa | 0.157/0.197 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-10 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,700/3,100
Specifications Rated Voltage
230 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
35/38 dBA
