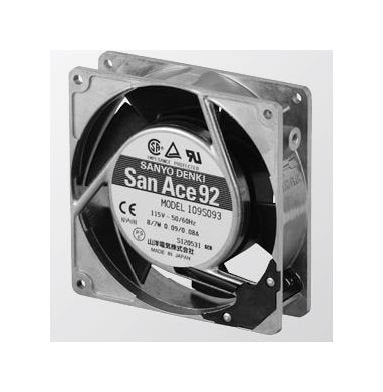

San Ace 92 Series AC Fan with Sensor - Model 109S491
San Ace 92 Series AC Fan with Sensor - Model 109S491
SKU:SAN-57d14f
San Ace 92 Series AC Fan - Model 109S491. Reliable cooling solution with aluminum frame, UL94V-1 plastic impeller, and high airflow. Ideal for industrial applications.
Regular price
$55.99
Regular price
Sale price
$55.99
Unit price
per
Initiate Order
San Ace 92 Series AC Fan with Sensor - Model 109S491
$55.99
Quantity: 1
Claim Your Seller Account
San Ace 92 Series AC Fan with Sensor - Model 109S491
$55.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 92 Series AC Fan with Sensor, model 109S491, is a high-quality cooling solution designed for reliable and efficient performance. With a lightweight aluminum frame and UL94V-1 rated plastic impeller, this fan ensures safety and durability. Operating within a temperature range of -10 to +60°C, it delivers a maximum airflow of 1.1 m³/min and a maximum static pressure of 49.0 Pa. Rated for 25,000 hours of operation at 60°C, this fan is ideal for demanding industrial applications. The dielectric strength and compliance with various standards make it a dependable choice for institutional and government buyers.
Product Specifications
Specifications Current
0.1 /0.09 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
92Ã92Ã25 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
8/7 W
Specifications Locked Rotor Current
0.13/0.12 A
Specifications Mass
310 g
Specifications Maximum Air Flow
0.95/1.1 m³/min | 33.6/38.9 ft³/min
Specifications Maximum Static Pressure
39.2/49.0 Pa | 0.157/0.197 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-10 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,700/3,100
Specifications Rated Voltage
100 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
35/38 dBA
