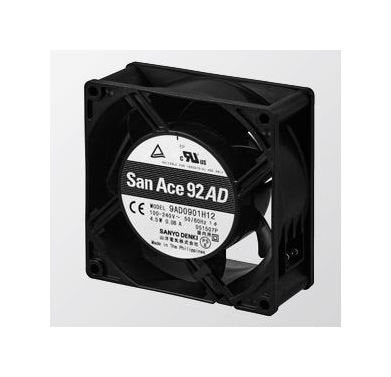

San Ace 92AD Power Converting Fan

Name: San Ace 92AD Power Converting Fan
Brand: Marsh Electronics, Inc.
SKU: SAN-d55a68
Price: 49.99 USD
Availability: OutOfStock

SKU:SAN-d55a68

Efficiently convert AC to DC with the San Ace 92AD Power Converting Fan. Reliable performance in a compact design.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The San Ace 92AD Series AC to DC Power Converting Fan is expertly designed to convert AC power to DC power internally, combining the superior performance of a DC fan with the versatile input of AC. With dimensions of 92 x 92 x 38 mm, a frame and impeller made of UL94V-0 rated plastics for safety, and a wide operating voltage range of 90 to 264 V, this fan ensures efficient cooling in various settings. It boasts a rated speed of 3850 rpm, maximum airflow of 1.50 m³/min, and a whisper-quiet sound pressure level of 40 dBA. Ideal for both consumer and institutional applications, this fan offers reliability and durability, with an expected life of up to 60,000 hours at 60ºC.

Product Specifications

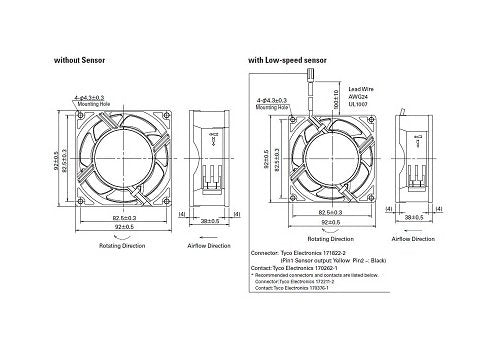

Specifications Dimensions

92 Ã 92 Ã 38 mm

Specifications Expected Life At 60c

60,000 hours

Specifications Frame Material

Plastics (Flammability: UL94V-0)

Specifications Frequency

50/60 Hz

Specifications Impeller Material

Plastics (Flammability: UL94V-0)

Specifications Mass

250 g

Specifications Maximum Air Flow

1.50 mÂ³/min | 53.0 ftÂ³/min

Specifications Maximum Static Pressure

90 Pa | 0.36 inH2O

Specifications Non Condensing Storage Temperature

-30 to +75

Specifications Operating Temperature Range

-20 to 75 ÂºC

Specifications Operating Voltage Range

90 to 264 V

Specifications Rated Current

0.08 A

Specifications Rated Input Power

4.5 W

Specifications Rated Speed

3850 rpm

Specifications Rated Voltage Range

100 to 240 V

Specifications Sound Pressure Level

40 dBA

San Ace 92AD Power Converting Fan
