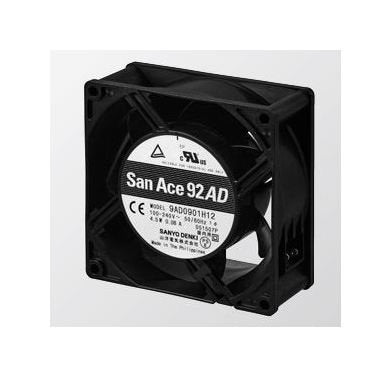

San Ace 92AD Series AC to DC Power Converting Fan
San Ace 92AD Series AC to DC Power Converting Fan
SKU:SAN-0dca3f
Experience superior performance and adaptability with the San Ace 92AD AC to DC Fan. Reliable cooling with efficient AC to DC power conversion.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
San Ace 92AD Series AC to DC Power Converting Fan
$24.99
Quantity: 1
Claim Your Seller Account
San Ace 92AD Series AC to DC Power Converting Fan
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 92AD Series AC to DC Power Converting Fan sets a new standard in performance and versatility. With its compact dimensions of 92 × 92 × 38 mm and a lightweight design of 250 g, this fan seamlessly converts AC power to DC power. Operating within a wide voltage range of 90 to 264 V, it delivers reliable cooling with a rated speed of 3,100 rpm and a maximum air flow of 1.18 m³/min. Built with UL94V-0 plastics for both the frame and impeller, this fan ensures safety and durability. It meets industry-leading standards for sound pressure level, temperature range, and expected lifespan, making it ideal for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

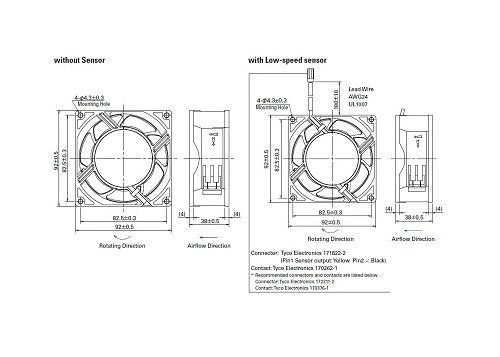

Specifications Dimensions
92 Ã 92 Ã 38 mm
Specifications Expected Life At 60c
60,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-0)
Specifications Mass
250 g
Specifications Maximum Air Flow
1.18 m³/min | 41.7 ft³/min
Specifications Maximum Static Pressure
56 Pa | 0.22 inH2O
Specifications Non Condensing Storage Temperature
-30 to +75
Specifications Operating Temperature Range
-20 to 75 ºC
Specifications Operating Voltage Range
90 to 264 V
Specifications Rated Current
0.06 A
Specifications Rated Input Power
3.0 W
Specifications Rated Speed
3,100 rpm
Specifications Rated Voltage Range
100 to 240 V
Specifications Sound Pressure Level
33 dBA
