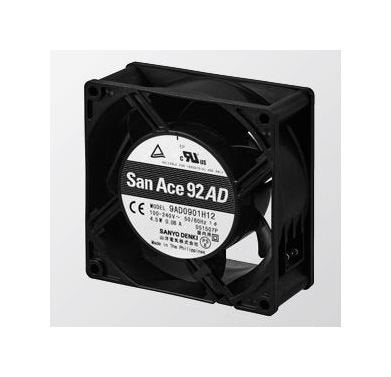

San Ace 92AD Series Power Converting Fan
San Ace 92AD Series Power Converting Fan
SKU:SAN-ca24a4
High-performance AC to DC Power Converting Fan with UL94V-0 plastics and quiet operation
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
San Ace 92AD Series Power Converting Fan
$34.99
Quantity: 1
Claim Your Seller Account
San Ace 92AD Series Power Converting Fan
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 92AD Series AC to DC Power Converting Fan is a high-performance solution that seamlessly converts AC power to DC power internally. With dimensions of 92x92x38 mm, a rated voltage range of 100-240V, and an operating temperature range of -20 to 75°C, this fan offers reliability and efficiency. It features a lightweight frame and impeller made of plastics with UL94V-0 flammability rating, ensuring safety and durability. Operating quietly at 33 dBA, this fan provides maximum air flow of 1.18 m³/min, making it ideal for various cooling applications. With an expected life of 60,000 hours at 60°C, this fan is built to last in demanding environments.
Product Specifications

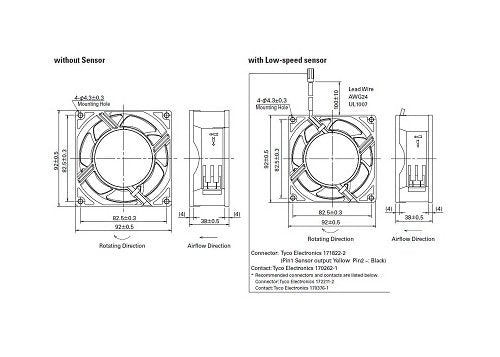

Specifications Dimensions
92 Ã 92 Ã 38 mm
Specifications Expected Life At 60c
60,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-0)
Specifications Mass
250 g
Specifications Maximum Air Flow
1.18 m³/min | 41.7 ft³/min
Specifications Maximum Static Pressure
56 Pa | 0.22 inH2O
Specifications Non Condensing Storage Temperature
-30 to +75
Specifications Operating Temperature Range
-20 to 75 ºC
Specifications Operating Voltage Range
90 to 264 V
Specifications Rated Current
0.06 A
Specifications Rated Input Power
3.0 W
Specifications Rated Speed
3,100 rpm
Specifications Rated Voltage Range
100 to 240 V
Specifications Sound Pressure Level
33 dBA
