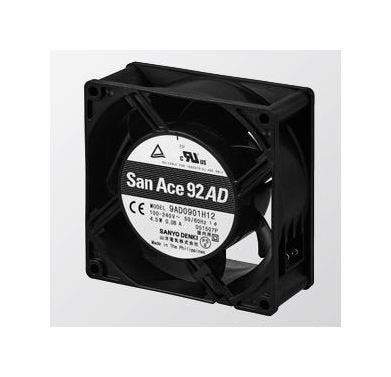

San Ace 92AD Series Power Converting Fan, 92 Ã 92 mm
San Ace 92AD Series Power Converting Fan, 92 Ã 92 mm
SKU:SAN-f68070
Enhance performance with the San Ace 92AD Series Power Converting Fan. Convert AC to DC power effortlessly with top-notch efficiency and safety in a compact design.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
San Ace 92AD Series Power Converting Fan, 92 Ã 92 mm
$34.99
Quantity: 1
Claim Your Seller Account
San Ace 92AD Series Power Converting Fan, 92 Ã 92 mm
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 92AD Series AC to DC Power Converting Fan offers exceptional performance by converting AC power internally to DC power. With a compact design of 92 à 92 × 38 mm and a flammability rating of UL94V-0 for both frame and impeller materials, this fan ensures safety and efficiency. Operating within a wide voltage range of 90 to 264 V and meeting stringent industry standards, it delivers optimal airflow of 1.50 m³/min at a speed of 3850 rpm. Ideal for institutional and government applications, this fan guarantees reliability with an expected lifespan of 60,000 hours at 60ºC.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

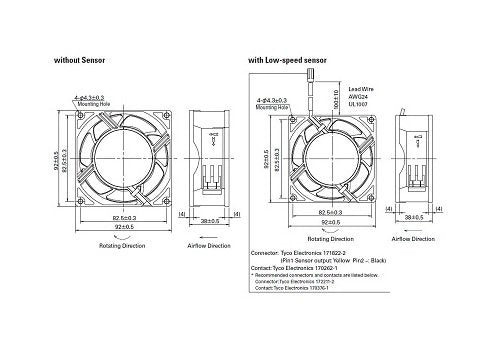

Specifications Dimensions
92 Ã 92 Ã 38 mm
Specifications Expected Life At 60c
60,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-0)
Specifications Mass
250 g
Specifications Maximum Air Flow
1.50 m³/min | 53.0 ft³/min
Specifications Maximum Static Pressure
90 Pa | 0.36 inH2O
Specifications Non Condensing Storage Temperature
-30 to +75
Specifications Operating Temperature Range
-20 to 75 ºC
Specifications Operating Voltage Range
90 to 264 V
Specifications Rated Current
0.08 A
Specifications Rated Input Power
4.5 W
Specifications Rated Speed
3850 rpm
Specifications Rated Voltage Range
100 to 240 V
Specifications Sound Pressure Level
40 dBA
