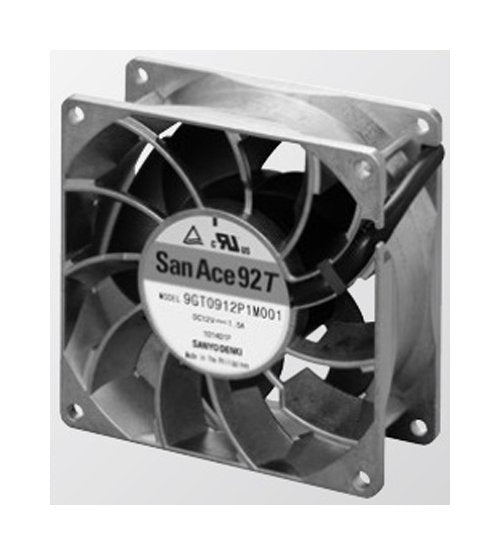

San Ace 92T Wide Temperature Range Fan
San Ace 92T Wide Temperature Range Fan
SKU:SAN-522cbb
Enhance cooling efficiency with the San Ace 92T Wide Temperature Range Fan designed for extreme environments. Rated for 24V voltage with a max air flow of 3.30 m³/min.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
San Ace 92T Wide Temperature Range Fan
$49.99
Quantity: 1
Claim Your Seller Account
San Ace 92T Wide Temperature Range Fan
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 92T Wide Temperature Range Fan is engineered to deliver optimal performance in extreme environments. With dimensions of 92 x 92 x 38 mm and a lightweight aluminum frame, this fan ensures efficient cooling with a rated voltage of 24 V. It features a maximum air flow of 3.30 m³/min, a maximum sound pressure level of 58 dBA, and operates within a wide temperature range of -40 to +85 ºC. Built to last with an expected life of 40000 hours at 85ºC, this fan is ideal for applications requiring reliable cooling in harsh conditions.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Control Lead Wire Color
Brown
Specifications Dimensions
92 x 92 x 38 mm
Specifications Expected Life At 85c
40000 hours
Specifications Frame Material
Aluminum
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
270 g
Specifications Maximum Air Flow
3.30 m³/min | 116.6 ft³/min
Specifications Maximum Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Maximum Rated Current
0.75 A
Specifications Maximum Rated Input Power
18.0 W
Specifications Maximum Rated Speed
8100 rpm
Specifications Maximum Sound Pressure Level
58 dBA
Specifications Maximum Static Pressure
315 Pa | 1.26 inH2O
Specifications Minimum Air Flow
1.50 m³/min | 53.0 ft³/min
Specifications Minimum Pulse Width Modulation Pwm Duty Cycle
30 %
Specifications Minimum Rated Current
0.15 A
Specifications Minimum Rated Input Power
3.6 W
Specifications Minimum Rated Speed
3750 rpm
Specifications Minimum Sound Pressure Level
37 dBA
Specifications Minimum Static Pressure
72.0 Pa | 0.29 inH2O
Specifications Non Condensing Storage Temperature
-40 to 85 ºC
Specifications Note
Fan does not rotate when Pulse-Width Modulation (PWM) duty cycle is 0%.
Specifications Operating Temperature Range
-40 to +85 ºC
Specifications Operating Voltage Range
20.4 to 27.6 V
Specifications Pulse Width Modulation Pwm Frequency
25 kHz
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
