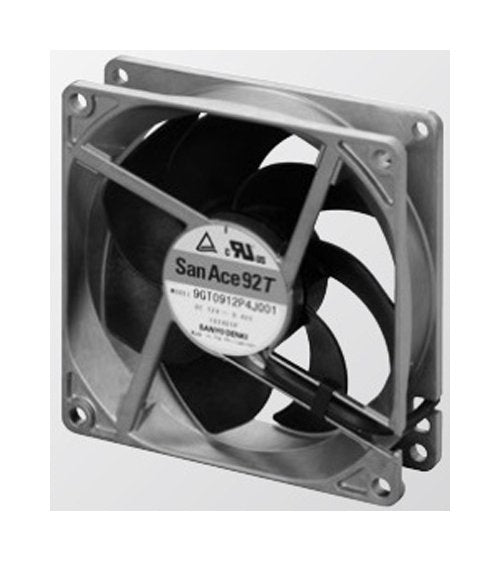

San Ace 92T Wide Temperature Range Fan - 92 x 92 x 25mm
San Ace 92T Wide Temperature Range Fan - 92 x 92 x 25mm
SKU:SAN-9019b6
High-performance San Ace 92T Wide Temperature Range Fan for extreme environments, PWM-controlled airflow, UL94V-1 compliant, -40 to +85°C operation.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 92T Wide Temperature Range Fan - 92 x 92 x 25mm
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 92T Wide Temperature Range Fan - 92 x 92 x 25mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 92T Wide Temperature Range Fan is a high-performance cooling solution designed for precision and durability. With dimensions of 92 x 92 x 25mm and a sturdy aluminum frame, this fan ensures efficient heat dissipation in extreme environments. It features PWM control for customizable speeds between 1850 to 5000 rpm, delivering airflow ranging from 0.81 to 2.20 m³/min. Designed to meet UL94V-1 flammability standards, this fan guarantees safe operation and reliability. Operating at a wide temperature range of -40 to +85°C and with a lifespan of up to 40,000 hours, it is an ideal choice for industrial, government, and institutional applications.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Control Lead Wire Color
Brown
Specifications Dimensions
92 x 92 x 25 mm
Specifications Expected Life At 85c
40000 hours
Specifications Frame Material
Aluminum
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
150 g
Specifications Maximum Air Flow
2.20 m³/min | 77.7 ft³/min
Specifications Maximum Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Maximum Rated Current
0.42 A
Specifications Maximum Rated Input Power
5.04 W
Specifications Maximum Rated Speed
5000 rpm
Specifications Maximum Sound Pressure Level
44 dBA
Specifications Maximum Static Pressure
105 Pa | 0.42 inH2O
Specifications Minimum Air Flow
0.81 m³/min | 28.7 ft³/min
Specifications Minimum Pulse Width Modulation Pwm Duty Cycle
30 %
Specifications Minimum Rated Current
0.07 A
Specifications Minimum Rated Input Power
0.84 W
Specifications Minimum Rated Speed
1850 rpm
Specifications Minimum Sound Pressure Level
18 dBA
Specifications Minimum Static Pressure
14.3 Pa | 0.05 inH2O
Specifications Non Condensing Storage Temperature
-40 to 85 ºC
Specifications Note
Fan does not rotate when Pulse-Width Modulation (PWM) duty cycle is 0%.
Specifications Operating Temperature Range
-40 to +85 ºC
Specifications Operating Voltage Range
10.2 to 13.8 V
Specifications Pulse Width Modulation Pwm Frequency
25 kHz
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
