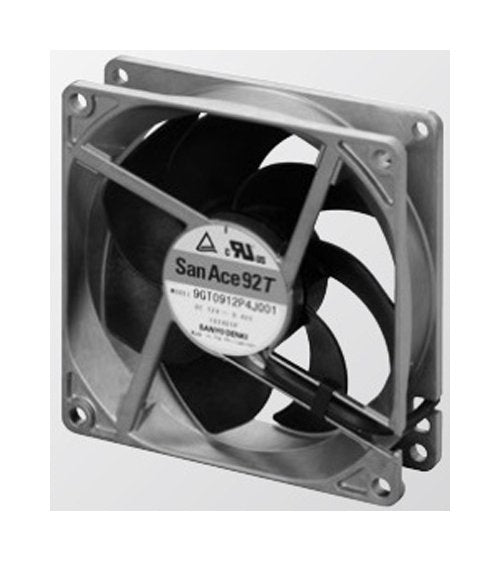

San Ace 92T Wide Temperature Range Fan 9GT0924P4J001
San Ace 92T Wide Temperature Range Fan 9GT0924P4J001
SKU:SAN-40c58f
Premium San Ace 92T Wide Temperature Fan, 92x92x25mm, Aluminum Frame, UL94V-1 Plastics, -40 to +85 °C Range, 1850-5000 RPM, 0.81-2.20 m³/min Airflow, 18-44 dBA Noise Level
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 92T Wide Temperature Range Fan 9GT0924P4J001
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 92T Wide Temperature Range Fan 9GT0924P4J001
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 92T Wide Temperature Range Fan 9GT0924P4J001 is a high-performance cooling solution designed for demanding environments. With dimensions of 92 x 92 x 25 mm and a lightweight aluminum frame, this fan delivers efficient cooling while maintaining a durable construction. Its UL94V-1 rated plastics impeller ensures safety and reliability. Operating within a wide temperature range of -40 to +85 °C, this fan offers a variable speed range from 1850 to 5000 rpm, providing optimal airflow of 0.81 to 2.20 m³/min. Experience quiet operation with sound pressure levels ranging from 18 to 44 dBA, making it suitable for various applications that require effective cooling in extreme conditions.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Control Lead Wire Color
Brown
Specifications Dimensions
92 x 92 x 25 mm
Specifications Expected Life At 85c
40000 hours
Specifications Frame Material
Aluminum
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
150 g
Specifications Maximum Air Flow
2.20 m³/min | 77.7 ft³/min
Specifications Maximum Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Maximum Rated Current
0.21 A
Specifications Maximum Rated Input Power
5.04 W
Specifications Maximum Rated Speed
5000 rpm
Specifications Maximum Sound Pressure Level
44 dBA
Specifications Maximum Static Pressure
105 Pa | 0.42 inH2O
Specifications Minimum Air Flow
0.81 m³/min | 28.7 ft³/min
Specifications Minimum Pulse Width Modulation Pwm Duty Cycle
30 %
Specifications Minimum Rated Current
0.05 A
Specifications Minimum Rated Input Power
1.20 W
Specifications Minimum Rated Speed
1850 rpm
Specifications Minimum Sound Pressure Level
18 dBA
Specifications Minimum Static Pressure
14.3 Pa | 0.05 inH2O
Specifications Non Condensing Storage Temperature
-40 to 85 ºC
Specifications Note
Fan does not rotate when Pulse-Width Modulation (PWM) duty cycle is 0%.
Specifications Operating Temperature Range
-40 to +85 ºC
Specifications Operating Voltage Range
20.4 to 27.6 V
Specifications Pulse Width Modulation Pwm Frequency
25 kHz
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
