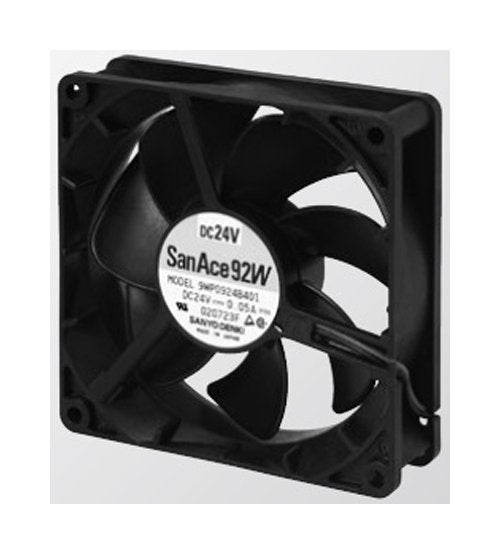

San Ace 92W 92x25 mm Splash Proof Fan
San Ace 92W 92x25 mm Splash Proof Fan
SKU:SAN-52a301
Efficient San Ace 92W 92x25 mm Splash Proof Fan for reliable cooling performance in various environments.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
San Ace 92W 92x25 mm Splash Proof Fan
$24.99
Quantity: 1
Claim Your Seller Account
San Ace 92W 92x25 mm Splash Proof Fan
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 92W Series Splash Proof Fan is a reliable cooling solution designed for efficiency and durability. With dimensions of 92 x 92 x 25 mm and a lightweight mass of 120 g, this fan is crafted from UL94V-0 rated plastic materials ensuring safety. Operating at a rated voltage of 12 V and drawing 0.27 A, it delivers a rated speed of 3550 rpm, generating an airflow of 1.66 m³/min. With a static pressure of 56.1 Pa, this fan operates quietly at 39 dBA, and offers an extended lifespan of 40,000 hours at 60°C. Suitable for a wide temperature range from -20 to +70°C, it meets high-performance standards for both consumer and institutional applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Air Flow
1.66 m³/min | 58.6 ft³/min
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue
Specifications Dimensions
92 x 92 x 25 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-0)
Specifications Mass
120 g
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
6 to 13.8 V
Specifications Rated Current
0.27 A
Specifications Rated Input Power
3.24 W
Specifications Rated Speed
3550 rpm
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
39 dBA
Specifications Static Pressure
56.1 Pa | 0.225 inH2O
