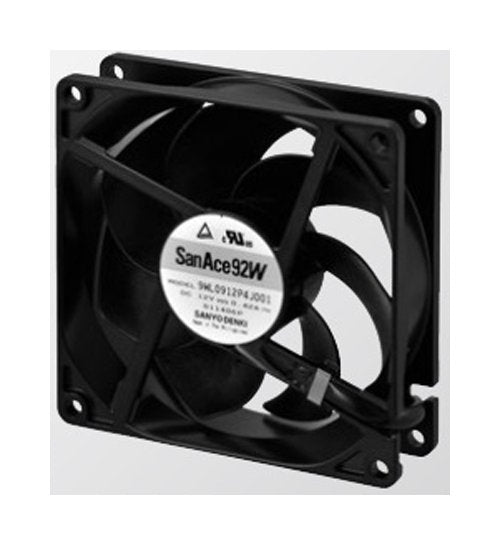

San Ace 92W Series Splash Proof Fan - 24V DC, 92x92x25mm
San Ace 92W Series Splash Proof Fan - 24V DC, 92x92x25mm
SKU:SAN-c7afdb
Powerful and durable 24V DC fan with efficient airflow, ideal for demanding environments.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
San Ace 92W Series Splash Proof Fan - 24V DC, 92x92x25mm
$39.99
Quantity: 1
Claim Your Seller Account
San Ace 92W Series Splash Proof Fan - 24V DC, 92x92x25mm
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 92W Series Splash Proof Fan is a high-performance cooling solution designed for demanding environments. With a dimension of 92 x 92 x 25 mm and a rated voltage of 24V, this fan guarantees reliable and efficient operation. Constructed with an aluminum frame and UL94V-1 compliant plastic impeller, it ensures durability and safety. Operating within a wide temperature range of -20 to +70°C, it provides consistent airflow with low noise levels. Ideal for applications requiring PWM control, this fan offers a maximum airflow of 1.38 m³/min. Trust in the San Ace reliability for superior cooling.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Control Lead Wire Color
Brown
Specifications Dimensions
92 x 92 x 25 mm
Specifications Expected Life At 60c
180,000 hours
Specifications Frame Material
Aluminum (Black coating)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
170 g
Specifications Maximum Air Flow
1.38 m³/min | 48.7 ft³/min
Specifications Maximum Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Maximum Rated Current
0.07 A
Specifications Maximum Rated Input Power
1.68 W
Specifications Maximum Rated Speed
3150 rpm
Specifications Maximum Sound Pressure Level
32 dBA
Specifications Maximum Static Pressure
41.6 Pa | 0.17 inH2O
Specifications Minimum Air Flow
0.43 m³/min | 15.1 ft³/min
Specifications Minimum Pulse Width Modulation Pwm Duty Cycle
30 %
Specifications Minimum Rated Current
0.02 A
Specifications Minimum Rated Input Power
0.48 W
Specifications Minimum Rated Speed
1000 rpm
Specifications Minimum Sound Pressure Level
8 dBA
Specifications Minimum Static Pressure
4.18 Pa | 0.016 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Note
Fan does not rotate when Pulse-Width Modulation (PWM) duty cycle is 0%.
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
21.6 to 26.4 V
Specifications Pulse Width Modulation Pwm Frequency
25 kHz
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
