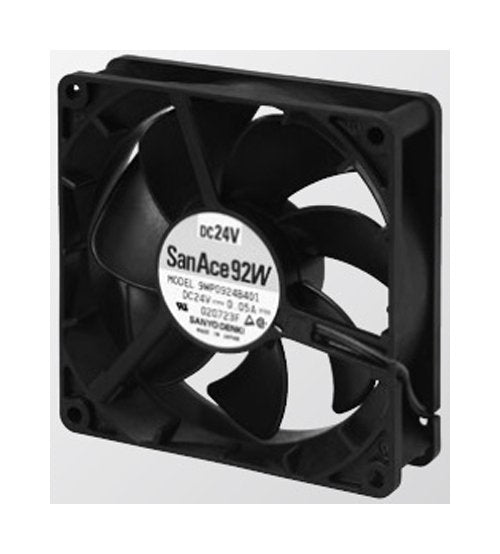

San Ace 92W Series Splash Proof Fan - 92 x 25 mm, 24V
San Ace 92W Series Splash Proof Fan - 92 x 25 mm, 24V
SKU:SAN-7e6751
Reliable San Ace 92W Series Splash Proof Fan - 92 x 25 mm, 24V, UL94V-0 plastics, 3900 rpm, 1.76 m³/min airflow
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 92W Series Splash Proof Fan - 92 x 25 mm, 24V
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 92W Series Splash Proof Fan - 92 x 25 mm, 24V
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 92W Series Splash Proof Fan is a reliable cooling solution with dimensions of 92 x 92 x 25 mm, suitable for various applications. Featuring a durable plastic frame and impeller with UL94V-0 flammability rating, this fan ensures safety and longevity. With a rated voltage of 24V and operating voltage range of 12 to 27.6V, it offers efficient performance at a rated speed of 3900 rpm. The fan provides an air flow of 1.76 m³/min, a static pressure of 66.5 Pa, and a sound pressure level of 43 dBA, making it ideal for cooling systems requiring precision and reliability. With a life expectancy of 40,000 hours at 60°C, this fan is a cost-effective solution for your cooling needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Air Flow
1.76 m³/min | 62.2 ft³/min
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue
Specifications Dimensions
92 x 92 x 25 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-0)
Specifications Mass
120 g
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
12 to 27.6 V
Specifications Rated Current
0.19 A
Specifications Rated Input Power
4.56 W
Specifications Rated Speed
3900 rpm
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
43 dBA
Specifications Static Pressure
66.5 Pa | 0.267 inH2O
