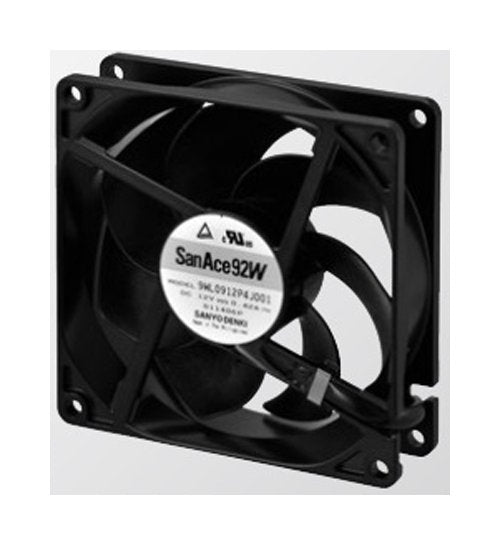

San Ace 92W Series Splash Proof Fan - 92 x 25mm, 12V
San Ace 92W Series Splash Proof Fan - 92 x 25mm, 12V
SKU:SAN-cb2d5c
Reliable San Ace 92W Series Splash Proof Fan - Ideal for Consumer & Institutional Use
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
San Ace 92W Series Splash Proof Fan - 92 x 25mm, 12V
$24.99
Quantity: 1
Claim Your Seller Account
San Ace 92W Series Splash Proof Fan - 92 x 25mm, 12V
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 92W Series Splash Proof Fan is a reliable cooling solution ideal for both consumer and institutional use. With a durable aluminum frame and UL94V-1 rated plastic impeller, this fan ensures safety and efficiency. Operating at a voltage range of 10.8 to 13.2V, it delivers a maximum air flow of 1.38 m³/min and a quiet operation with a maximum sound pressure level of 32 dBA. Designed for longevity, this fan has an expected life of 180,000 hours at 60ºC. Trust in the San Ace 92W for top-notch performance and compliance with industry standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Control Lead Wire Color
Brown
Specifications Dimensions
92 x 92 x 25 mm
Specifications Expected Life At 60c
180,000 hours
Specifications Frame Material
Aluminum (Black coating)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
170 g
Specifications Maximum Air Flow
1.38 m³/min | 48.7 ft³/min
Specifications Maximum Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Maximum Rated Current
0.15 A
Specifications Maximum Rated Input Power
1.80 W
Specifications Maximum Rated Speed
3150 rpm
Specifications Maximum Sound Pressure Level
32 dBA
Specifications Maximum Static Pressure
41.6 Pa | 0.17 inH2O
Specifications Minimum Air Flow
0.48 m³/min | 16.9 ft³/min
Specifications Minimum Pulse Width Modulation Pwm Duty Cycle
30 %
Specifications Minimum Rated Current
0.04 A
Specifications Minimum Rated Input Power
0.48 W
Specifications Minimum Rated Speed
1,100 rpm
Specifications Minimum Sound Pressure Level
9 dBA
Specifications Minimum Static Pressure
5.07 Pa | 0.02 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Note
Fan does not rotate when Pulse-Width Modulation (PWM) duty cycle is 0%.
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
10.8 to 13.2 V
Specifications Pulse Width Modulation Pwm Frequency
25 kHz
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
