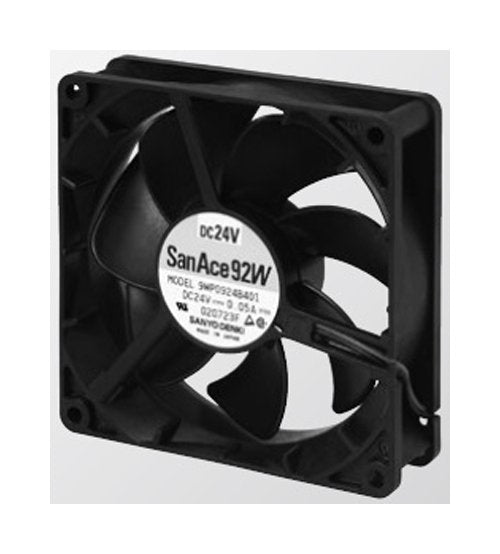

San Ace 92W Series Splash Proof Fan - 92 x 92 mm, 24V, 3150 RPM
San Ace 92W Series Splash Proof Fan - 92 x 92 mm, 24V, 3150 RPM
SKU:SAN-626db8
Powerful San Ace 92W Series Splash Proof Fan - optimal cooling, durable design, 92 x 92 x 25 mm
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 92W Series Splash Proof Fan - 92 x 92 mm, 24V, 3150 RPM
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 92W Series Splash Proof Fan - 92 x 92 mm, 24V, 3150 RPM
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 92W Series Splash Proof Fan is designed for reliable cooling in demanding environments. With dimensions of 92 x 92 x 25 mm, this fan operates at a rated voltage of 24V and a speed of 3150 RPM. Its UL94V-0 flammability-rated plastics frame and impeller ensure safety. Generating a 1.45 m³/min air flow and 44 Pa static pressure, it offers efficient cooling with a sound pressure level of 33 dBA. This fan is built to withstand temperatures from -20 to +70 °C and has an expected life of 40,000 hours at 60°C, making it a durable and high-performance choice for industrial applications.
Product Specifications
Specifications Air Flow
1.45 m³/min | 51.2 ft³/min
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue
Specifications Dimensions
92 x 92 x 25 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-0)
Specifications Mass
120 g
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
12 to 27.6 V
Specifications Rated Current
0.1 A
Specifications Rated Input Power
2.4 W
Specifications Rated Speed
3150 rpm
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
33 dBA
Specifications Static Pressure
44 Pa | 0.177 inH2O
