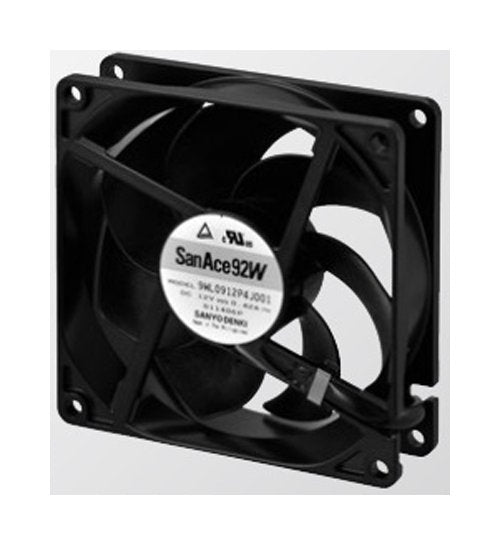

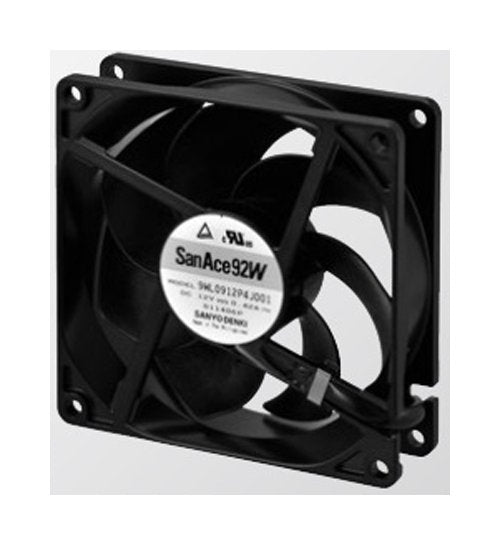

San Ace 92W Series Splash Proof Fan - 92 x 92 x 25 mm, 24V
San Ace 92W Series Splash Proof Fan - 92 x 92 x 25 mm, 24V
SKU:SAN-becc3f
High-quality 92 x 92 x 25 mm 24V fan with aluminum frame, plastic impeller, and excellent durability.
Regular price
$32.99
Regular price
Sale price
$32.99
Unit price
per
Initiate Order
San Ace 92W Series Splash Proof Fan - 92 x 92 x 25 mm, 24V
$32.99
Quantity: 1
Claim Your Seller Account
San Ace 92W Series Splash Proof Fan - 92 x 92 x 25 mm, 24V
$32.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 92W Series Splash Proof Fan is a high-quality cooling solution designed for demanding industrial and institutional environments. With dimensions of 92 x 92 x 25 mm and a frame made of aluminum with black coating, this fan is durable and reliable. It features a plastic impeller with UL94V-1 flammability rating, ensuring safety and efficiency. Operating at a rated voltage of 24V, this fan offers a maximum air flow of 2.20 m³/min and a maximum static pressure of 105 Pa. With a wide operating temperature range of -20 to +70 °C and an expected life of 180,000 hours at 60°C, this fan is built to withstand harsh conditions while maintaining optimal performance.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Control Lead Wire Color
Brown
Specifications Dimensions
92 x 92 x 25 mm
Specifications Expected Life At 60c
180,000 hours
Specifications Frame Material
Aluminum (Black coating)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
170 g
Specifications Maximum Air Flow
2.20 m³/min | 77.7 ft³/min
Specifications Maximum Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Maximum Rated Current
0.21 A
Specifications Maximum Rated Input Power
5.04 W
Specifications Maximum Rated Speed
5000 rpm
Specifications Maximum Sound Pressure Level
44 dBA
Specifications Maximum Static Pressure
105 Pa | 0.42 inH2O
Specifications Minimum Air Flow
0.48 m³/min | 16.9 ft³/min
Specifications Minimum Pulse Width Modulation Pwm Duty Cycle
20 %
Specifications Minimum Rated Current
0.02 A
Specifications Minimum Rated Input Power
0.48 W
Specifications Minimum Rated Speed
1,100 rpm
Specifications Minimum Sound Pressure Level
9 dBA
Specifications Minimum Static Pressure
5.07 Pa | 0.02 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Note
Fan does not rotate when Pulse-Width Modulation (PWM) duty cycle is 0%.
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
21.6 to 26.4 V
Specifications Pulse Width Modulation Pwm Frequency
25 kHz
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
