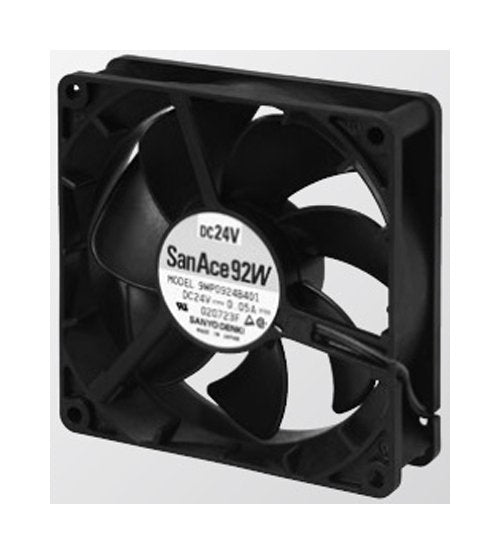

San Ace 92W Series Splash Proof Fan - 92x25mm, 24V
San Ace 92W Series Splash Proof Fan - 92x25mm, 24V
SKU:SAN-f871c0
San Ace 92W Series 92x25mm Fan - Reliable, Efficient, Long-lasting Cooling Solution
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
San Ace 92W Series Splash Proof Fan - 92x25mm, 24V
$24.99
Quantity: 1
Claim Your Seller Account
San Ace 92W Series Splash Proof Fan - 92x25mm, 24V
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 92W Series Splash Proof Fan is a reliable cooling solution designed for industrial and commercial applications. Measuring 92 x 92 x 25 mm and featuring a durable frame and impeller made of UL94V-0 rated plastics, this fan ensures efficient and safe operation. With a rated voltage of 24V and a wide operating voltage range of 12 to 27.6V, it delivers optimal performance. Operating at a speed of 2650 rpm, this fan provides a high air flow of 1.24 m³/min with a low sound pressure level of 30 dBA. Built to last, it offers an expected life of 40,000 hours at 60ºC, making it a cost-effective choice for long-term use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Air Flow
1.24 m³/min | 43.8 ft³/min
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue
Specifications Dimensions
92 x 92 x 25 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-0)
Specifications Mass
120 g
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
12 to 27.6 V
Specifications Rated Current
0.08 A
Specifications Rated Input Power
1.92 W
Specifications Rated Speed
2650 rpm
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
30 dBA
Specifications Static Pressure
32.2 Pa | 0.129 inH2O
