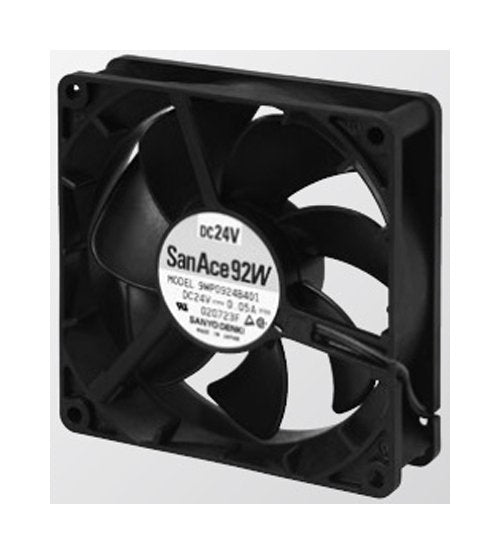

San Ace 92W Series Splash Proof Fan - 92x92x25mm, 24V, 3.6W
San Ace 92W Series Splash Proof Fan - 92x92x25mm, 24V, 3.6W
SKU:SAN-51de85
Reliable San Ace 92W Splash Proof Fan - 92x92x25mm, 24V, 1.66m³/min airflow, 39dBA noise
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 92W Series Splash Proof Fan - 92x92x25mm, 24V, 3.6W
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 92W Series Splash Proof Fan - 92x92x25mm, 24V, 3.6W
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 92W Series Splash Proof Fan is a reliable cooling solution built with high-quality plastics that meet UL94V-0 flammability standards. With a compact size of 92x92x25mm, this fan operates at a rated voltage of 24V, ensuring optimal performance within an operating temperature range of -20 to +70°C. It delivers a powerful airflow of 1.66 m³/min and has a noise level of 39 dBA, making it ideal for both consumer and institutional applications. With a rated speed of 3550 rpm and an expected life of 40,000 hours at 60°C, this fan guarantees long-lasting, efficient cooling.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Air Flow
1.66 m³/min | 58.6 ft³/min
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue
Specifications Dimensions
92 x 92 x 25 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-0)
Specifications Mass
120 g
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
12 to 27.6 V
Specifications Rated Current
0.15 A
Specifications Rated Input Power
3.6 W
Specifications Rated Speed
3550 rpm
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
39 dBA
Specifications Static Pressure
56.1 Pa | 0.225 inH2O
