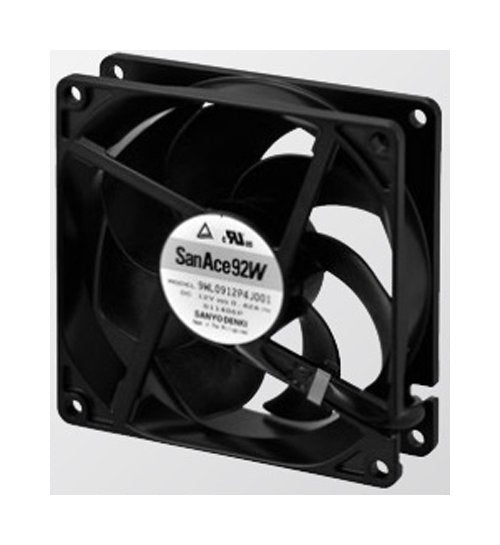

San Ace 92W Splash Proof Fan
San Ace 92W Splash Proof Fan
SKU:SAN-4c240b
San Ace 92W Splash Proof Fan - Reliable, durable, and efficient cooling solution for demanding environments.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 92W Splash Proof Fan
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 92W Splash Proof Fan
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 92W Splash Proof Fan is a reliable cooling solution designed for demanding environments. With a durable aluminum frame and UL94V-1 rated plastic impeller, this fan ensures longevity and safety. Operating in a wide temperature range of -20 to +70°C, it delivers consistent performance. Offering a rated voltage of 12V and PWM control, it provides efficient airflow up to 1.69 m³/min. With a maximum sound pressure level of 37 dBA, this fan balances performance and noise output, making it ideal for various applications.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Control Lead Wire Color
Brown
Specifications Dimensions
92 x 92 x 25 mm
Specifications Expected Life At 60c
180,000 hours
Specifications Frame Material
Aluminum (Black coating)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
170 g
Specifications Maximum Air Flow
1.69 m³/min | 59.7 ft³/min
Specifications Maximum Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Maximum Rated Current
0.22 A
Specifications Maximum Rated Input Power
2.64 W
Specifications Maximum Rated Speed
3850 rpm
Specifications Maximum Sound Pressure Level
37 dBA
Specifications Maximum Static Pressure
62.1 Pa | 0.25 inH2O
Specifications Minimum Air Flow
0.61 m³/min | 21.5 ft³/min
Specifications Minimum Pulse Width Modulation Pwm Duty Cycle
30 %
Specifications Minimum Rated Current
0.04 A
Specifications Minimum Rated Input Power
0.48 W
Specifications Minimum Rated Speed
1,400 rpm
Specifications Minimum Sound Pressure Level
13 dBA
Specifications Minimum Static Pressure
8.21 Pa | 0.032 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Note
Fan does not rotate when Pulse-Width Modulation (PWM) duty cycle is 0%.
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
10.8 to 13.2 V
Specifications Pulse Width Modulation Pwm Frequency
25 kHz
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
