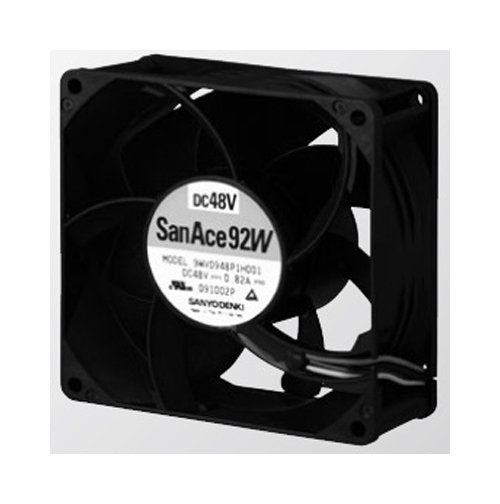

San Ace 92W Splash Proof Fan
San Ace 92W Splash Proof Fan
SKU:SAN-4a4577
San Ace 92W Splash Proof Fan - Reliable cooling solution with high performance and durability for industrial and institutional needs.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
San Ace 92W Splash Proof Fan
$49.99
Quantity: 1
Claim Your Seller Account
San Ace 92W Splash Proof Fan
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 92W Splash Proof Fan is a reliable cooling solution suitable for both consumer and institutional needs. With dimensions of 92 x 92 x 38 mm and a sturdy frame material meeting UL94V-0 flammability standards, this fan offers exceptional performance. Operating at a rated voltage of 48V and featuring a pulse-width modulation frequency of 25 kHz, it ensures efficient airflow with a maximum air flow of 5.05 m³/min. Designed for durability, compliance, and high performance, this fan is ideal for various industrial and institutional applications.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Control Lead Wire Color
Brown
Specifications Dimensions
92 x 92 x 38 mm
Specifications Expected Life At 60c
300000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
265 g
Specifications Maximum Air Flow
5.05 m³/min | 178 ft³/min
Specifications Maximum Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Maximum Rated Current
0.82 A
Specifications Maximum Rated Input Power
39.4 W
Specifications Maximum Rated Speed
8500 rpm
Specifications Maximum Sound Pressure Level
64 dBA
Specifications Maximum Static Pressure
385 Pa | 1.55 inH2O
Specifications Minimum Air Flow
2.37 m³/min | 83.7 ft³/min
Specifications Minimum Rated Current
0.14 A
Specifications Minimum Rated Input Power
6.7 W
Specifications Minimum Rated Speed
4000 rpm
Specifications Minimum Sound Pressure Level
45 dBA
Specifications Minimum Static Pressure
85.2 Pa | 0.34 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
40.8 to 52.8 V
Specifications Pulse Width Modulation Pwm Frequency
25 kHz
Specifications Rated Voltage
48 V
Specifications Sensor Lead Wire Color
Yellow
