San Ace 92W Splash Proof Fan
San Ace 92W Splash Proof Fan
SKU:SAN-4f7966
Get optimal cooling with the San Ace 92W Splash Proof Fan. Durable, efficient, and compliant with industry standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 92W Splash Proof Fan
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 92W Splash Proof Fan
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

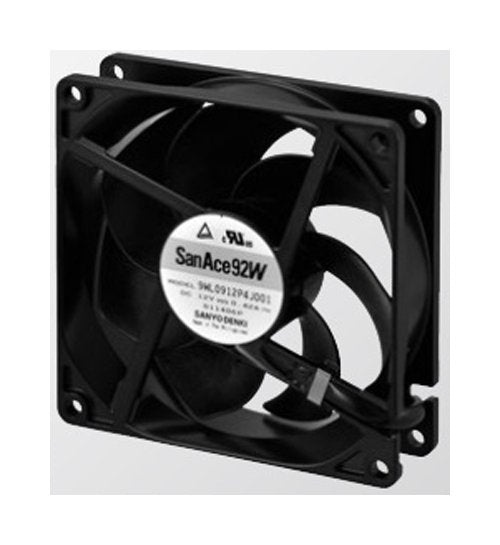

The San Ace 92W Splash Proof Fan is a durable cooling solution designed for both consumer and institutional needs. With dimensions of 92 x 92 x 25 mm and a black-coated aluminum frame, this fan is built to withstand various environments. It features a non-rotating function at 0% PWM duty cycle, ensuring efficient operation. The fan operates within a wide temperature range of -20 to +70°C and meets stringent UL94V-1 flammability standards. With a maximum air flow of 1.93 m³/min and a maximum static pressure of 81 Pa, it delivers optimal cooling performance while maintaining a low sound pressure level of 40 dBA.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Control Lead Wire Color
Brown
Specifications Dimensions
92 x 92 x 25 mm
Specifications Expected Life At 60c
180,000 hours
Specifications Frame Material
Aluminum (Black coating)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
170 g
Specifications Maximum Air Flow
1.93 m³/min | 68.2 ft³/min
Specifications Maximum Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Maximum Rated Current
0.30 A
Specifications Maximum Rated Input Power
3.60 W
Specifications Maximum Rated Speed
4400 rpm
Specifications Maximum Sound Pressure Level
40 dBA
Specifications Maximum Static Pressure
81 Pa | 0.33 inH2O
Specifications Minimum Air Flow
0.43 m³/min | 15.1 ft³/min
Specifications Minimum Pulse Width Modulation Pwm Duty Cycle
20 %
Specifications Minimum Rated Current
0.04 A
Specifications Minimum Rated Input Power
0.48 W
Specifications Minimum Rated Speed
1000 rpm
Specifications Minimum Sound Pressure Level
8 dBA
Specifications Minimum Static Pressure
4.18 Pa | 0.016 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Note
Fan does not rotate when Pulse-Width Modulation (PWM) duty cycle is 0%.
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
10.8 to 13.2 V
Specifications Pulse Width Modulation Pwm Frequency
25 kHz
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
