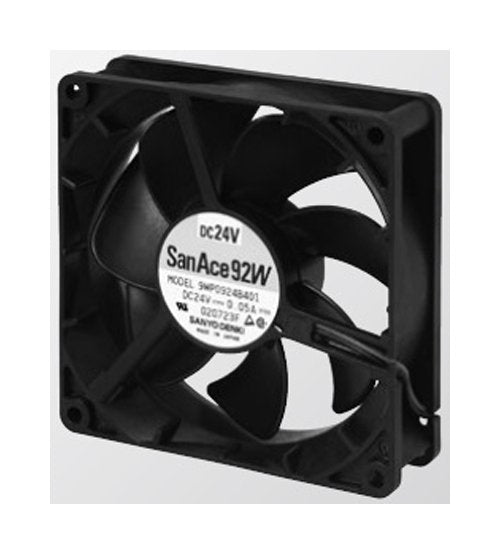

San Ace 92W Splash Proof Fan
San Ace 92W Splash Proof Fan
SKU:SAN-1d7cfd
Enhance ventilation with the San Ace 92W Splash Proof Fan. Durable, efficient, and reliable for industrial use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 92W Splash Proof Fan
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 92W Splash Proof Fan
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 92W Series Splash Proof Fan is a reliable cooling solution designed with precise specifications for optimal performance. With dimensions of 92 x 92 x 25 mm and a durable frame and impeller made of UL94V-0 rated plastics, this fan ensures both safety and efficiency. Operating at a rated voltage of 24V with a low sound pressure level of 23 dBA, it delivers a consistent airflow of 0.90 m³/min. This fan is built to withstand a wide temperature range, making it ideal for industrial and institutional applications requiring long-term reliability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Air Flow
0.90 m³/min | 31.8 ft³/min
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue
Specifications Dimensions
92 x 92 x 25 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-0)
Specifications Mass
120 g
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-10 to 70 ºC
Specifications Operating Voltage Range
12 to 27.6 V
Specifications Rated Current
0.05 A
Specifications Rated Input Power
1.2 W
Specifications Rated Speed
2000 rpm
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
23 dBA
Specifications Static Pressure
18.0 Pa | 0.072 inH2O
