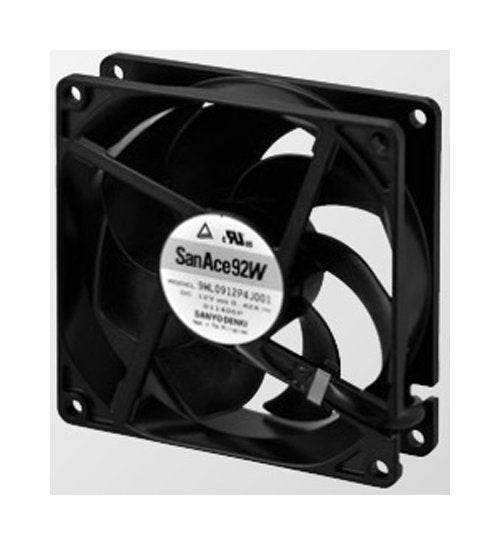

San Ace 92W Splash Proof Fan, 92 x 92 x 25 mm, 24V
San Ace 92W Splash Proof Fan, 92 x 92 x 25 mm, 24V
SKU:SAN-1d1c0a
High-quality San Ace 92W Series Splash Proof Fan for industrial cooling needs. Durable, efficient, and noise-conscious design for reliable performance.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
San Ace 92W Splash Proof Fan, 92 x 92 x 25 mm, 24V
$39.99
Quantity: 1
Claim Your Seller Account
San Ace 92W Splash Proof Fan, 92 x 92 x 25 mm, 24V
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 92W Series Splash Proof Fan is a high-quality cooling solution designed for industrial and institutional applications. With a durable aluminum frame and UL94V-1 rated plastic impeller, this fan ensures reliable performance in various environments. Operating within a temperature range of -20°C to +70°C, it offers a rated voltage of 24V and meets stringent noise and efficiency standards. Ideal for equipment requiring efficient airflow and minimal maintenance.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Control Lead Wire Color
Brown
Specifications Dimensions
92 x 92 x 25 mm
Specifications Expected Life At 60c
180,000 hours
Specifications Frame Material
Aluminum (Black coating)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
170 g
Specifications Maximum Air Flow
1.69 m³/min | 59.7 ft³/min
Specifications Maximum Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Maximum Rated Current
0.11 A
Specifications Maximum Rated Input Power
2.64 W
Specifications Maximum Rated Speed
3850 rpm
Specifications Maximum Sound Pressure Level
37 dBA
Specifications Maximum Static Pressure
62.1 Pa | 0.25 inH2O
Specifications Minimum Air Flow
0.57 m³/min | 20.1 ft³/min
Specifications Minimum Pulse Width Modulation Pwm Duty Cycle
30 %
Specifications Minimum Rated Current
0.02 A
Specifications Minimum Rated Input Power
0.48 W
Specifications Minimum Rated Speed
1300 rpm
Specifications Minimum Sound Pressure Level
12 dBA
Specifications Minimum Static Pressure
7.08 Pa | 0.028 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Note
Fan does not rotate when Pulse-Width Modulation (PWM) duty cycle is 0%.
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
21.6 to 26.4 V
Specifications Pulse Width Modulation Pwm Frequency
25 kHz
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
