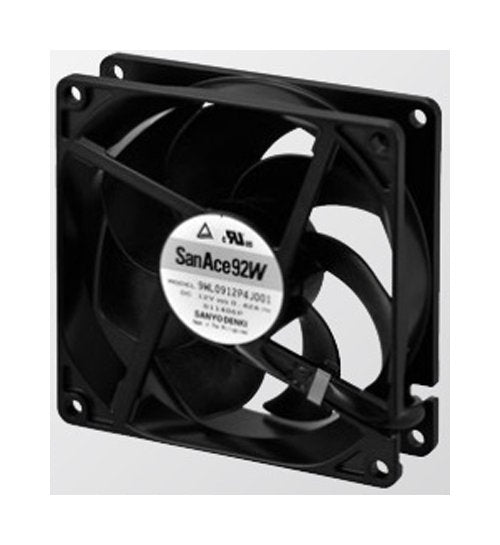

San Ace 92W Splash Proof Fan, 92x92x25mm
San Ace 92W Splash Proof Fan, 92x92x25mm
SKU:SAN-ef9a2d
Rugged and efficient San Ace 92W Splash Proof Fan for industrial cooling needs, with high airflow and low noise levels.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
San Ace 92W Splash Proof Fan, 92x92x25mm
$34.99
Quantity: 1
Claim Your Seller Account
San Ace 92W Splash Proof Fan, 92x92x25mm
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 92W Splash Proof Fan is a durable and efficient cooling solution designed for demanding environments. With a rugged aluminum frame and UL94V-1 rated plastic impeller, this fan offers reliable performance in harsh conditions. Operating at a voltage range of 10.8 to 13.2V and a PWM frequency of 25 kHz, it delivers a maximum air flow of 2.20 m³/min while maintaining a low sound pressure level of 11 dBA. Perfect for industrial applications requiring a splash-proof design and long service life, this fan is built to meet the highest standards of performance and reliability.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Control Lead Wire Color
Brown
Specifications Dimensions
92 x 92 x 25 mm
Specifications Expected Life At 60c
180,000 hours
Specifications Frame Material
Aluminum (Black coating)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
170 g
Specifications Maximum Air Flow
2.20 m³/min | 77.7 ft³/min
Specifications Maximum Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Maximum Rated Current
0.42 A
Specifications Maximum Rated Input Power
5.04 W
Specifications Maximum Rated Speed
5000 rpm
Specifications Maximum Sound Pressure Level
44 dBA
Specifications Maximum Static Pressure
105 Pa | 0.42 inH2O
Specifications Minimum Air Flow
0.52 m³/min | 18.4 ft³/min
Specifications Minimum Pulse Width Modulation Pwm Duty Cycle
20 %
Specifications Minimum Rated Current
0.04 A
Specifications Minimum Rated Input Power
0.48 W
Specifications Minimum Rated Speed
1,200 rpm
Specifications Minimum Sound Pressure Level
11 dBA
Specifications Minimum Static Pressure
6.04 Pa | 0.024 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Note
Fan does not rotate when Pulse-Width Modulation (PWM) duty cycle is 0%.
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
10.8 to 13.2 V
Specifications Pulse Width Modulation Pwm Frequency
25 kHz
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
