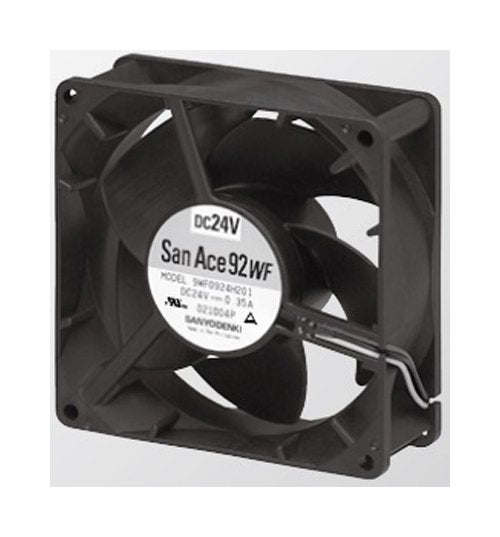

San Ace 92WF Oil Proof Fan, 24V, 92x92x32mm
San Ace 92WF Oil Proof Fan, 24V, 92x92x32mm
SKU:SAN-36f0a3
High-performing San Ace 92WF Oil Proof Fan for industrial cooling needs. 24V, 92x92x32mm, durable build, reliable performance.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
San Ace 92WF Oil Proof Fan, 24V, 92x92x32mm
$35.99
Quantity: 1
Claim Your Seller Account
San Ace 92WF Oil Proof Fan, 24V, 92x92x32mm
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 92WF Oil Proof Fan is a reliable cooling solution designed for industrial and institutional applications. With a rated voltage of 24V and a durable frame and impeller made of UL94V-0 rated plastics, this fan ensures safe and efficient operation. It offers a maximum airflow of 2.8 m³/min, a maximum static pressure of 255 Pa, and operates at a sound pressure level of 58 dBA. Engineered for longevity, it has an expected life of 40,000 hours at 60°C. Trust in the San Ace 92WF for superior cooling performance in demanding environments.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Dimensions
92 x 92 x 32 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-0)
Specifications Mass
185 g
Specifications Maximum Air Flow
2.8 m³/min | 98.9 ft³/min
Specifications Maximum Static Pressure
255 Pa | 1.02 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
20.4 to 27.6 V
Specifications Rated Current
0.5 A
Specifications Rated Input Power
12 W
Specifications Rated Speed
7300 rpm
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
58 dBA
