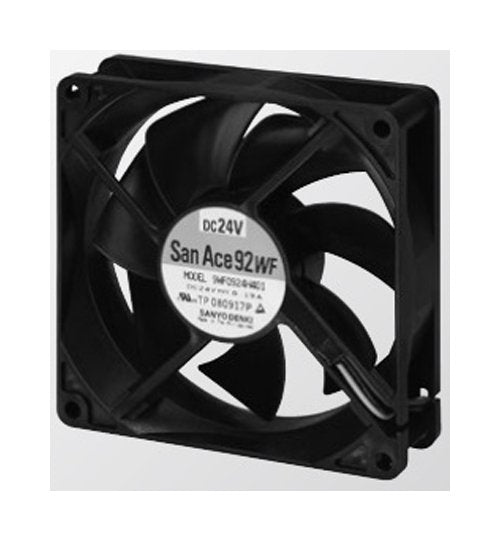

San Ace 92WF Oil Proof Fan - 92 x 92 x 25 mm, 24V, 3900 rpm

San Ace 92WF Oil Proof Fan - 92 x 92 x 25 mm, 24V, 3900 rpm

SKU:SAN-a6d512

San Ace 92WF Oil Proof Fan - Durable, High Performance, 24V, 3900 rpm

Regular price $39.99
Regular price Sale price $39.99
Sale

Initiate Order

San Ace 92WF Oil Proof Fan - 92 x 92 x 25 mm, 24V, 3900 rpm

San Ace 92WF Oil Proof Fan - 92 x 92 x 25 mm, 24V, 3900 rpm

$39.99

Quantity: 1

Claim Your Seller Account

San Ace 92WF Oil Proof Fan - 92 x 92 x 25 mm, 24V, 3900 rpm

San Ace 92WF Oil Proof Fan - 92 x 92 x 25 mm, 24V, 3900 rpm

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The San Ace 92WF Oil Proof Fan is a reliable cooling solution ideal for both consumer and institutional settings. With a durable frame and impeller made of flame-retardant plastics (UL94V-0), this fan ensures safety and longevity. Operating at a rated voltage of 24V and a rated current of 0.13A, it delivers superior air flow of 1.45 m³/min while maintaining a low sound pressure level of 42.5 dBA. Designed for versatility, it operates within a wide temperature range from -20 to +70 °C and boasts an expected life of 40,000 hours at 60°C. Trust in the San Ace 92WF for efficient, long-lasting performance.

Product Specifications

Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Dimensions
92 x 92 x 25 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-0)
Specifications Mass
120 g
Specifications Maximum Air Flow
1.45 m³/min | 51.2 ft³/min
Specifications Maximum Static Pressure
66 Pa | 0.26 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
20.4 to 27.6 V
Specifications Rated Current
0.13 A
Specifications Rated Input Power
3.12 W
Specifications Rated Speed
3900 rpm
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
42.5 dBA
