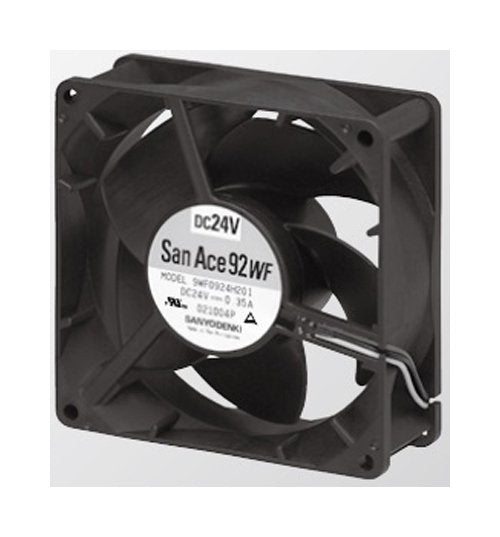

San Ace 92WF Oil Proof Fan, 92x92x32mm
San Ace 92WF Oil Proof Fan, 92x92x32mm
SKU:SAN-1e9dfe
Reliable San Ace 92WF Oil Proof Fan, 92x92x32mm, for industrial cooling needs. Durable, high-performance, and designed for longevity.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
San Ace 92WF Oil Proof Fan, 92x92x32mm
$24.99
Quantity: 1
Claim Your Seller Account
San Ace 92WF Oil Proof Fan, 92x92x32mm
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 92WF Oil Proof Fan is a reliable cooling solution designed for industrial and institutional applications. With a robust frame and impeller made of UL94V-0 compliant plastics, this fan ensures safety and durability. Operating at a rated voltage of 24V and a maximum speed of 6500 rpm, it delivers a maximum airflow of 2.45 m³/min. Additionally, meeting stringent standards for sound pressure level (56 dBA) and operating temperature range (-20 to +70 ºC), this fan guarantees optimal performance and longevity, with an expected life of 40,000 hours at 60ºC.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Dimensions
92 x 92 x 32 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-0)
Specifications Mass
185 g
Specifications Maximum Air Flow
2.45 m³/min | 86.5 ft³/min
Specifications Maximum Static Pressure
200 Pa | 0.8 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
20.4 to 27.6 V
Specifications Rated Current
0.35 A
Specifications Rated Input Power
8.4 W
Specifications Rated Speed
6500 rpm
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
56 dBA
