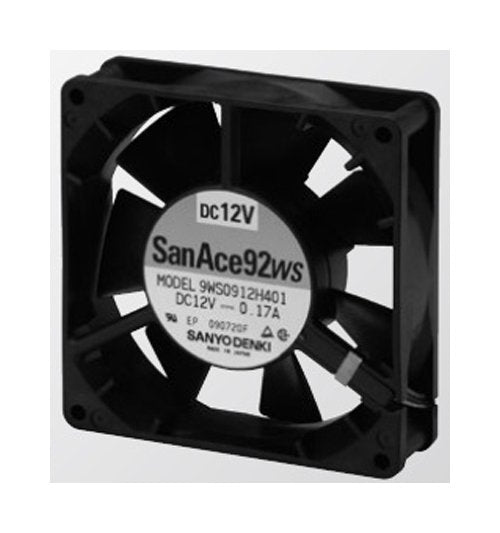

The San Ace 92WS Series Splash Proof Fan is designed for optimal performance in challenging environments. With a rated voltage of 12V and a maximum air flow of 1.01 m³/min, this fan ensures efficient cooling while maintaining a quiet operation with a sound pressure level of 27 dBA. Constructed with UL94V-0 flammability-rated plastic materials, this fan meets rigorous safety standards and offers a reliable solution for both consumer and institutional applications.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue
Specifications Dimensions
92 x 92 x 25 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
150 g
Specifications Maximum Air Flow
1.01 m³/min | 35.7 ft³/min
Specifications Maximum Static Pressure
23.5 Pa | 0.094 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
10.2 to 13.8 V
Specifications Rated Current
0.1 A
Specifications Rated Input Power
1.2 W
Specifications Rated Speed
2100 rpm
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
27 dBA
