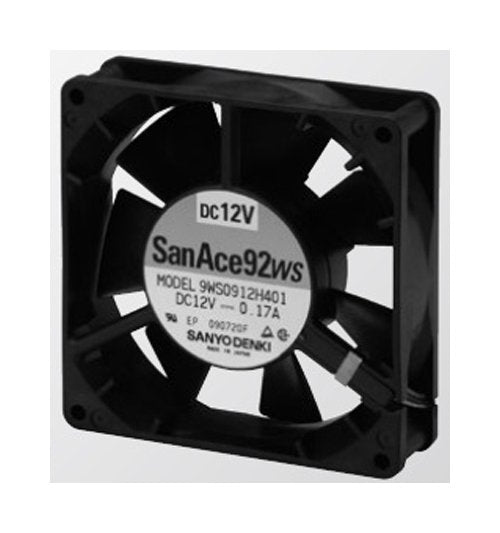

San Ace 92WS Splash Proof Fan, 92 x 92 mm
San Ace 92WS Splash Proof Fan, 92 x 92 mm
SKU:SAN-00e202
Reliable and efficient San Ace 92WS Splash Proof Fan for industrial cooling needs. Meets UL flammability standards and offers long-lasting performance.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
San Ace 92WS Splash Proof Fan, 92 x 92 mm
$24.99
Quantity: 1
Claim Your Seller Account
San Ace 92WS Splash Proof Fan, 92 x 92 mm
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 92WS Splash Proof Fan is a reliable cooling solution designed for industrial applications. With a frame and impeller made of plastics meeting UL94V-0 and UL94V-1 flammability standards, this fan ensures safe operation in a wide temperature range (-20 to +70 °C). Operating at a rated voltage of 12 V with a sound pressure level of 23 dBA, this fan delivers efficient performance with a maximum static pressure of 16.7 Pa. With an expected life of 40,000 hours at 60°C, it is a durable and cost-effective choice for government and institutional buyers.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue
Specifications Dimensions
92 x 92 x 25 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
150 g
Specifications Maximum Air Flow
0.8 m³/min | 28.2 ft³/min
Specifications Maximum Static Pressure
16.7 Pa | 0.067 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
10.2 to 13.8 V
Specifications Rated Current
0.06 A
Specifications Rated Input Power
0.72 W
Specifications Rated Speed
1700 rpm
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
23 dBA
