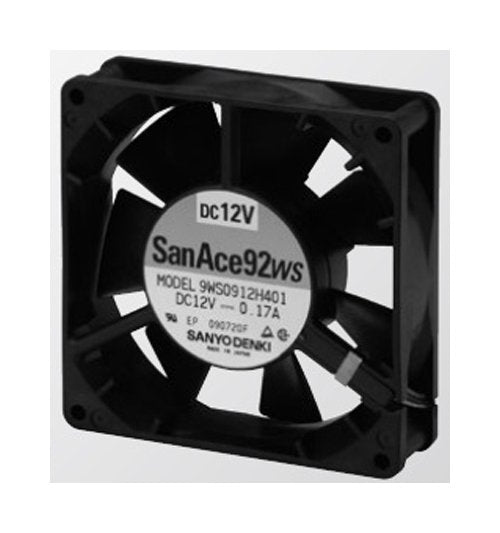

San Ace 92WS Splash Proof Fan - 92 x 92 mm, 12V, UL94V-0 Material

Name: San Ace 92WS Splash Proof Fan - 92 x 92 mm, 12V, UL94V-0 Material
Brand: Marsh Electronics, Inc.
SKU: SAN-2db956
Price: 29.99 USD
Availability: OutOfStock

SKU:SAN-2db956

Enhance system cooling with the San Ace 92WS Splash Proof Fan - reliable, efficient, and durable.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The San Ace 92WS Splash Proof Fan is a reliable cooling solution designed for both consumer and institutional use. With a compact size of 92 x 92 x 25 mm and a lightweight mass of 150g, this fan provides maximum air flow of 1.18 m³/min, meeting the cooling needs of various systems. Made with UL94V-0 and UL94V-1 plastics, it ensures safety and durability. Rated for 40,000 hours at 60ºC, this fan offers long-term performance even in demanding environments.

Product Specifications

Specifications Anode Lead Wire Color

Red

Specifications Cathode Lead Wire Color

Black | Blue

Specifications Dimensions

92 x 92 x 25 mm

Specifications Expected Life At 60c

40,000 hours

Specifications Frame Material

Plastics (Flammability: UL94V-0)

Specifications Impeller Material

Plastics (Flammability: UL94V-1)

Specifications Mass

150 g

Specifications Maximum Air Flow

1.18 mÂ³/min | 41.7 ftÂ³/min

Specifications Maximum Static Pressure

32.3 Pa | 0.130 inH2O

Specifications Non Condensing Storage Temperature

-30 to +70 ÂºC

Specifications Operating Temperature Range

-20 to +70 ÂºC

Specifications Operating Voltage Range

10.2 to 13.8 V

Specifications Rated Current

0.13 A

Specifications Rated Input Power

1.56 W

Specifications Rated Speed

2450 rpm

Specifications Rated Voltage

12 V

Specifications Sensor Lead Wire Color

Yellow

Specifications Sound Pressure Level

30 dBA

San Ace 92WS Splash Proof Fan - 92 x 92 mm, 12V, UL94V-0 Material
