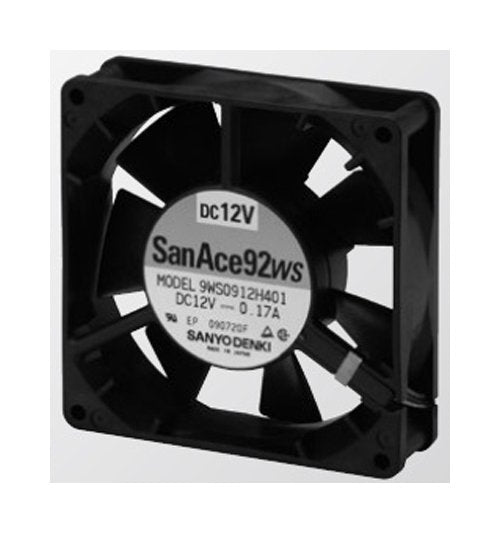

San Ace 92WS Splash Proof Fan, 92 x 92 x 25 mm

Name: San Ace 92WS Splash Proof Fan, 92 x 92 x 25 mm
Brand: Marsh Electronics, Inc.
SKU: SAN-b9508a
Price: 29.99 USD
Availability: OutOfStock

SKU:SAN-b9508a

Efficient and durable San Ace 92WS Splash Proof Fan for reliable cooling solutions.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The San Ace 92WS Splash Proof Fan sets a new standard in fan technology. With a compact design measuring 92 x 92 x 25 mm, this fan delivers a maximum air flow of 1.38 m³/min, providing efficient cooling in various applications. Constructed with UL94V-0 rated plastics, it ensures safety and reliability. Operating at a rated voltage of 12 V and a rated speed of 2850 rpm, this fan offers silent operation at 33 dBA. With an impressive lifespan of 40,000 hours at 60°C, this fan is built to last.

Product Specifications

Specifications Anode Lead Wire Color

Red

Specifications Cathode Lead Wire Color

Black | Blue

Specifications Dimensions

92 x 92 x 25 mm

Specifications Expected Life At 60c

40,000 hours

Specifications Frame Material

Plastics (Flammability: UL94V-0)

Specifications Impeller Material

Plastics (Flammability: UL94V-1)

Specifications Mass

150 g

Specifications Maximum Air Flow

1.38 mÂ³/min | 48.7 ftÂ³/min

Specifications Maximum Static Pressure

45.1 Pa | 0.181 inH2O

Specifications Non Condensing Storage Temperature

-30 to +70 ÂºC

Specifications Operating Temperature Range

-20 to +70 ÂºC

Specifications Operating Voltage Range

10.2 to 13.8 V

Specifications Rated Current

0.17 A

Specifications Rated Input Power

2.04 W

Specifications Rated Speed

2850 rpm

Specifications Rated Voltage

12 V

Specifications Sensor Lead Wire Color

Yellow

Specifications Sound Pressure Level

33 dBA

San Ace 92WS Splash Proof Fan, 92 x 92 x 25 mm
